Product Overview

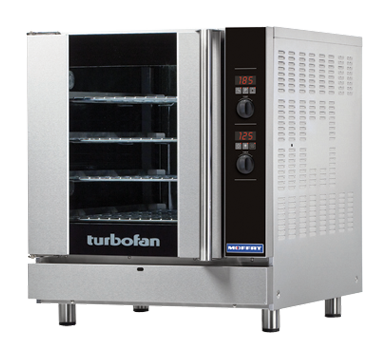

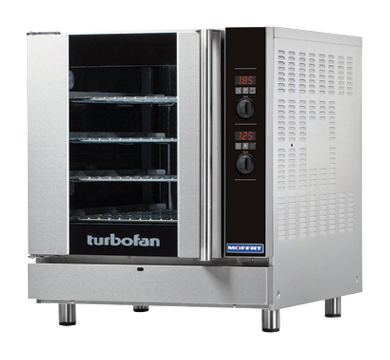

The Turbofan G32D4 is the gas-fired version of the full size E32D4, sharing the same 735mm wide cabinet and four full size sheet pan capacity but running on a 35 MJ/hr patented infrared burner system instead of electric elements. Where gas is preferred or electrical capacity is limited, the G32D4 does the cooking on gas while the controls run off a simple 10A cordset. Same digital control platform as the E32D4 with moisture injection, 3-stage programs and a bi-directional reversing fan. Supplied for natural gas or LPG.
Turbofan ovens are designed and manufactured by Moffat and backed by Moffat's Australia wide service and spare parts network. The G32D4 suits bakeries, pastry kitchens and caterers on sites where gas is already plumbed and the electrical supply is tight. Bench mount it on the supplied stainless steel legs or pair it with the SK32 stainless steel stand.
Best for: Kitchens with gas already plumbed that want full size sheet pan digital convection baking without heavy electrical load.
Key features
| Pan capacity | 4 x full size sheet pan |
| Tray spacing | 110mm |
| Burner system | 35 MJ/hr patented infrared burner |
| Gas type | Supplied for natural gas or LPG |
| Ignition | Electronic burner ignition |
| Safety | Flame failure safety control |
| Controls | Digital time and temperature |
| Modes | Manual and program modes |
| Programs | 20 programs with 3-stage cooking |
| Moisture | Moisture injection mode |
| Fan system | 2 speed bi-directional reversing fan |
| Thermostat range | 50°C to 260°C |
| Electrical supply | 240V, 0.5A |
| Electrical connection | 10A cordset fitted |
| Water connection (optional) | Cold water 3/4" BSP male |
| Oven chamber | Vitreous enamel, fully welded |
| Lighting | Halogen oven lamp |
| Door | Safe-Touch vented side-hinged door |
| Hinge | Standard LH hinge door |
| Door option | Door field convertible to RH |
| Inner door | Hinged glass inner door for easy cleaning |
| External width | 735mm |
| External depth | 810mm |
| External height | 910mm (80mm legs) |
| Included | 4 chrome plated oven grids |
| Nett weight | 131kg |
| Stand options | SK32 stand with tray runners under |
| Stacking | DSKG32 double stacking kit available |
| Manufacturer | Moffat |
| Made in | New Zealand |
| Warranty | 24 months parts and labour by Moffat |
SK32 stainless steel oven stand, $990.00 plus GST
The matching Turbofan SK32 stand puts the G32D4 at the perfect working height and adds tray storage underneath. All stainless steel welded frame with tray runners for full size sheet pans. Front castors have dual swivel and wheel locks. Also compatible with the E32D4. Contact us to add the SK32 to your order.
Double stacking
Two G32D4 ovens can be stacked using the DSKG32 double stacking kit ($690 ex GST) or DSKG32C with castors ($950 ex GST). Contact us to discuss stacked configurations.
Complete the baking station
The G32D4 is designed to sit over a Turbofan P or H series cabinet, giving you prove, bake and hold in one 735mm footprint on castors. Match it with a prover if you bake bread or pastry, or a holding cabinet if you cook ahead for service.
| P8M Prover and Holding Cabinet | 8 full size trays | Prove and hold | $4,850 |
| P12M Prover and Holding Cabinet | 12 full size trays | Prove and hold | $5,340 |
| H8D-FS-UC Holding Cabinet | 8 full size trays | Hold only | $4,890 |
| H10D-FS Holding Cabinet | 10 full size trays | Hold only | $4,980 |
All prices exclude GST. Contact us to order the oven and cabinet together.
Frequently asked questions
Does the Turbofan G32D4 need special electrical installation?
No. The gas burner does the cooking, so the electrics only run the controls, fan and lighting, drawing just 0.5A through a 10A cordset that plugs into a standard power point. This makes the G32D4 ideal for sites with limited electrical capacity.
Does the G32D4 run on natural gas or LPG?
Both. The G32D4 is supplied ready for natural gas or LPG. Let us know your gas type when ordering and we will make sure it arrives configured for your site.
Does the G32D4 need to be under an exhaust hood?
Yes. As a gas appliance the G32D4 must be installed under an exhaust hood to remove combustion fumes. If you cannot install a hood, look at the electric E32D4 instead, which does not require one as a single unit.
What trays does the Turbofan G32D4 take?
It holds 4 full size sheet pans with 110mm spacing between shelves. Four chrome plated oven grids are supplied.
Does the G32D4 have moisture injection?
Yes. The G32D4 has a moisture injection mode for crusty bread, pastry and regeneration. Connect it to a cold water supply via the optional 3/4" BSP male water connection.
What is the difference between the E32D4 and G32D4?
Same cabinet, same capacity, same digital controls. The E32D4 is electric, hardwired at 27A and does not need an exhaust hood as a single unit. The G32D4 is gas, plugs into a standard power point and must go under a hood. If gas is already plumbed and your switchboard is full, the G32D4 is the answer.
Turbofan 30 series compared
| Model | Trays | Controls | kW | Price |
|---|---|---|---|---|
| E30M3 | 3 x GN | Mech | 2.3 | $3,450 |
| E31D4 | 4 x GN | Digital | 3.1 | $3,790 |
| E33D5 | 5 x GN | Digital | 6 | $5,390 |
| E32D4 | 4 x Full | Digital | 6.5 | $5,990 |
| G32D4 | 4 x Full | Digital | 10 | $6,790 |
| E35D6 | 6 x Full | Digital | 12.5 | $11,820 |
All prices exclude GST.
What warranty comes with the Turbofan G32D4?
24 months parts and labour, backed by Moffat's Australia wide service network.
Warranty and support
- 24 months parts and labour warranty by Moffat
- Moffat national service and spare parts network
