Product Overview
The Turbofan E32D4 is a full size digital electric convection oven from Moffat, taking the step up from GN 1/1 to full size sheet pan capacity. Four full size sheet pans with 110mm spacing in a 735mm wide cabinet. Where the E31D4 is a compact plug-in workhorse, the E32D4 adds moisture injection, a 2 speed bi-directional reversing fan and 3-stage cooking programs, making it suited to high volume bakery, pastry and catering operations.
Turbofan ovens are designed and manufactured by Moffat and backed by Moffat's Australia wide service and spare parts network. The E32D4 is the industry standard full size digital convection oven for serious baking volume. It runs on single phase power, and if your site only has a 15A three phase circuit it can be split across 2 phases of 15A each. Bench mount it on the supplied stainless steel legs or pair it with the SK32 stainless steel stand.
Best for: Bakeries, pastry kitchens and caterers that bake on full size sheet pans and want digital controls with moisture injection.
Key features
| Pan capacity | 4 x full size sheet pan |
| Tray spacing | 110mm |
| Controls | Digital time and temperature |
| Modes | Manual and program modes |
| Programs | 20 programs with 3-stage cooking |
| Moisture | Moisture injection mode |
| Fan system | 2 speed bi-directional reversing fan |
| Thermostat range | 50°C to 260°C |
| Electrical supply | 230-240V, 1P+N+E, 6.5kW, 27A |
| Electrical options | Can be split into 2 phases of 15A each |
| Connection | Hardwired |
| Water connection (optional) | Cold water 3/4" BSP male |
| Oven chamber | Vitreous enamel, fully welded |
| Lighting | Halogen oven lamp |
| Door | Safe-Touch vented side-hinged door |
| Hinge | Standard LH hinge door |
| Door option | Door field convertible to RH |
| Inner door | Hinged glass inner door for easy cleaning |
| External width | 735mm |
| External depth | 810mm |
| External height | 730mm (80mm legs) |
| Included | 4 chrome plated oven grids |
| Nett weight | 89kg |
| Stand options | SK32 stand with tray runners under |
| Stacking | DSK32 double stacking kit available |
| Manufacturer | Moffat |
| Made in | New Zealand |
| Warranty | 24 months parts and labour by Moffat |
SK32 stainless steel oven stand, $990.00 plus GST
The matching Turbofan SK32 stand puts the E32D4 at the perfect working height and adds tray storage underneath. All stainless steel welded frame with tray runners for full size sheet pans, on castors with front wheel locks. The same stand suits the gas G32D4. Contact us to add the SK32 to your order.
Double stacking
Two E32D4 ovens can be stacked using the DSK32 double stacking kit, doubling your capacity in the same 735mm footprint. Contact us to discuss stacked configurations.
Complete the baking station
The E32D4 is designed to sit over a Turbofan P or H series cabinet, giving you prove, bake and hold in one 735mm footprint on castors. Match it with a prover if you bake bread or pastry, or a holding cabinet if you cook ahead for service.
| P8M Prover and Holding Cabinet | 8 full size trays | Prove and hold | $4,850 |
| P12M Prover and Holding Cabinet | 12 full size trays | Prove and hold | $5,340 |
| H8D-FS-UC Holding Cabinet | 8 full size trays | Hold only | $4,890 |
| H10D-FS Holding Cabinet | 10 full size trays | Hold only | $4,980 |
All prices exclude GST. Contact us to order the oven and cabinet together.
Frequently asked questions
Does the Turbofan E32D4 need three phase power?
No. The E32D4 runs on standard 230-240V single phase power drawing 27A, so it needs a dedicated 32A circuit rather than a standard 10A power point. If your site does not have a 32A single phase circuit but does have a 15A three phase circuit, the E32D4 can be split across 2 phases of 15A each, a solution most suppliers do not offer. Contact us to discuss your site's power setup.
What trays does the Turbofan E32D4 take?
It holds 4 full size sheet pans with 110mm spacing between shelves. Four chrome plated oven grids are supplied.
Does the E32D4 have moisture injection?
Yes. The E32D4 has a moisture injection mode for crusty bread, pastry and regeneration. Connect it to a cold water supply via the optional 3/4" BSP male water connection.
Does the E32D4 need to be under an exhaust hood?
No. At 6.5kW a single E32D4 sits under the 8kW limit for unhooded electric appliances in Australia, so it does not require an exhaust hood. Stacked combinations exceed 8kW combined and would then require a hood. Ventilation requirements can vary by council, so check your local regulations if unsure.
What is the difference between the E31D4 and E32D4?

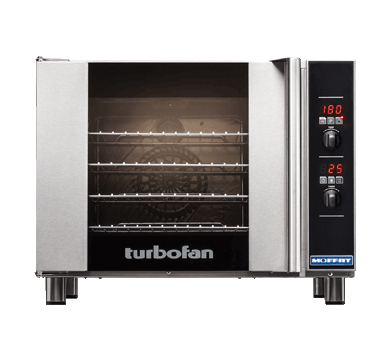

The E31D4 holds 4 x 1/1 GN pans and plugs into a 15A outlet. The E32D4 steps up to 4 full size sheet pans, adds moisture injection and a 2 speed bi-directional fan, and is hardwired. If you bake on 660mm x 460mm sheet pans, you need the E32D4.
Can the E32D4 be stacked?
Yes. Two E32D4 ovens stack using the DSK32 double stacking kit, or the E32D4 can sit over a matching P Series prover or H Series holding cabinet. Note stacked ovens exceed 8kW combined and require an exhaust hood.
Turbofan 30 series compared
| Model | Trays | Controls | kW | Price |
|---|---|---|---|---|
| E30M3 | 3 x GN | Mech | 2.3 | $3,450 |
| E31D4 | 4 x GN | Digital | 3.1 | $3,790 |
| E33D5 | 5 x GN | Digital | 6 | $5,390 |
| E32D4 | 4 x Full | Digital | 6.5 | $5,990 |
| G32D4 | 4 x Full | Digital | 10 | $6,790 |
| E35D6 | 6 x Full | Digital | 12.5 | $11,820 |
All prices exclude GST.
What warranty comes with the Turbofan E32D4?
24 months parts and labour, backed by Moffat's Australia wide service network.
Warranty and support
- 24 months parts and labour warranty by Moffat
- Moffat national service and spare parts network
