Product Overview

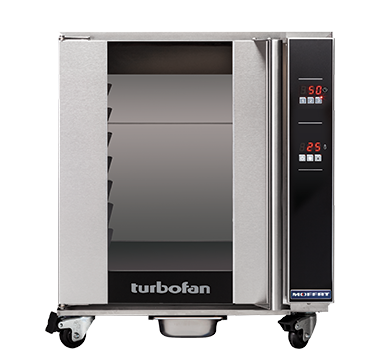

The Turbofan H8D-FS-UC is the full size version of the H8D-UC, an 8 tray digital holding cabinet from Moffat built to undercounter height, holding 8 x 460mm x 660mm full size sheet pans in a 735mm wide cabinet just 810mm tall. Digital temperature and timer controls with three hold timers keep different batches tracked at once, and a gentle low velocity fan holds food hot without drying it out. At 2.05kW it plugs straight into a standard power point and rolls anywhere on castors.

Turbofan holding cabinets are designed and manufactured by Moffat and backed by Moffat's Australia wide service and spare parts network. The undercounter height is the point of the H8D-FS-UC, slide it under a bench, use it as a stand for a Turbofan E32D4 or G32D4 oven, or roll it to the service line at mealtimes. A cabinet drain runs to a condensate pan, dual halogen lamps show what is inside, and the full double skin stainless construction keeps running costs down.

Best for: Kitchens holding full size trays hot through service that want a cabinet under the bench or under their E32/G32 oven.

Key features

Tray capacity	8 x 460mm x 660mm
Tray spacing	74mm
Controls	Digital temperature and timer
Hold timers	3 timers, up to 4 hours each
Timer modes	Countdown or count up
Temperature range	20°C to 90°C
Cabinet heating	1900W
Fan system	Low velocity circulation fan
Construction	Full double skin, 304 stainless interior
Drain	Cabinet drain to condensate pan
Electrical supply	240V, 2.05kW, 8.5A
Electrical connection	10A cordset fitted
Lighting	Dual halogen cabinet lamps
Door	Side-hinged glass door
Door seal	Plug-in continuous door seal
Mobility	4 x 65mm castors, front locking
External width	735mm
External depth	810mm
External height	810mm (65mm castors)
Matches under	Turbofan E32D4 and G32D4 ovens
Nett weight	81kg
Manufacturer	Moffat
Made in	New Zealand
Warranty	24 months parts and labour by Moffat

Frequently asked questions

What is a holding cabinet used for?

Keeping cooked food at safe serving temperature until it is needed, roasts resting, pies for the counter, plated meals for function service, batch cooking held for the rush. The gentle fan and 20 to 90 degree range hold food hot without cooking it further or drying it out, and the three timers track different batches at once.

Does the H8D-FS-UC prove dough?

No. Holding cabinets hold hot food, they have no humidity system. If you need to prove dough as well, look at the Turbofan P series prover and holding cabinets, which do both jobs.

Does the Turbofan H8D-FS-UC need special electrical installation?

No. At 2.05kW drawing 8.5A, the H8D-FS-UC comes with a 10A cordset fitted and plugs straight into a standard power point, no electrician needed.

Can an oven sit on top of the H8D-FS-UC?

Yes. At 810mm undercounter height it works as a mobile stand for the Turbofan E32D4 or G32D4 convection oven, matching their 735mm width, hold below, bake above. Contact us to price the combination together.

What trays does the Turbofan H8D-FS-UC take?

It holds 8 x 460mm x 660mm full size sheet pans with 74mm spacing between shelves, the same trays as the E32D4 above it, and the side racks are removable for cleaning.

Turbofan H series holding cabinets compared

Model	Capacity	Width	Height	Pairs with	Price
H8D-UC	8 x GN	610mm	810mm UC	E33D5	$4,690
H10D	10 x GN	610mm	1015mm	E33D5	$4,690
H8D-FS-UC	8 full size	735mm	810mm UC	E32D4, G32D4	$4,890

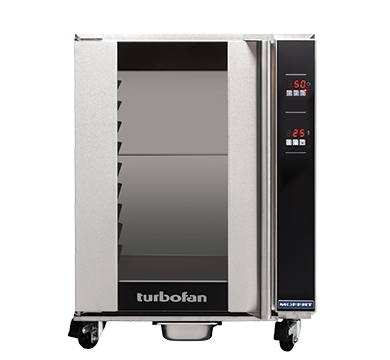

H10D-FS	10 full size	735mm	1015mm	E32D4, G32D4	$4,980
