Product Overview

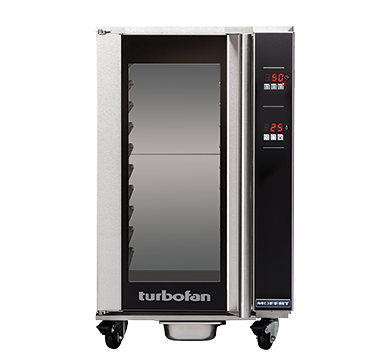

The Turbofan H10D is a 10 tray digital holding cabinet from Moffat, holding 10 x 1/1 GN pans at serving temperature in a compact 610mm wide cabinet. Digital temperature and timer controls with three hold timers keep different batches tracked at once, and a gentle low velocity fan holds food hot without drying it out. At 1.3kW it plugs straight into a standard power point and rolls anywhere on castors.
Turbofan holding cabinets are designed and manufactured by Moffat and backed by Moffat's Australia wide service and spare parts network. The H10D is sized to sit under a Turbofan E33D5 convection oven, matching its 610mm width, bake above and hold below in the narrowest footprint in the range, or roll it wherever service happens. A cabinet drain runs to a condensate pan, dual halogen lamps show what is inside, and the full double skin stainless construction keeps running costs down.
Best for: Kitchens holding 10 GN trays of cooked food hot that want a cabinet matching the E33D5 oven.
Key features
| Tray capacity | 10 x 1/1 GN pans |
| Tray spacing | 74mm |
| Controls | Digital temperature and timer |
| Hold timers | 3 timers, up to 4 hours each |
| Timer modes | Countdown or count up |
| Temperature range | 20°C to 90°C |
| Cabinet heating | 1200W |
| Fan system | Low velocity circulation fan |
| Construction | Full double skin, 304 stainless interior |
| Drain | Cabinet drain to condensate pan |
| Electrical supply | 240V, 1.3kW, 5.4A |
| Electrical connection | 10A cordset fitted |
| Lighting | Dual halogen cabinet lamps |
| Door | Side-hinged glass door |
| Door seal | Plug-in continuous door seal |
| Mobility | 4 x 76mm castors, front locking |
| External width | 610mm |
| External depth | 680mm |
| External height | 1015mm (76mm castors) |
| Matches under | Turbofan E33D5 oven |
| Nett weight | 77.5kg |
| Manufacturer | Moffat |
| Made in | New Zealand |
| Warranty | 24 months parts and labour by Moffat |
Frequently asked questions
What is a holding cabinet used for?
Keeping cooked food at safe serving temperature until it is needed, roasts resting, pies for the counter, plated meals for function service, batch cooking held for the rush. The gentle fan and 20 to 90 degree range hold food hot without cooking it further or drying it out, and the three timers track different batches at once.
What is the difference between the H8D-UC and H10D?
Same 610mm width, same controls. The H8D-UC is built to 810mm undercounter height with 8 trays, so it slides under a bench. The H10D stands 1015mm tall with 10 trays. If it lives under a counter, get the UC. If it stands on its own or under an oven and you want the extra trays, get the H10D.
Does the Turbofan H10D need special electrical installation?
No. At 1.3kW drawing 5.4A, the H10D comes with a 10A cordset fitted and plugs straight into a standard power point, no electrician needed.
Can an oven sit on top of the H10D?
Yes. The H10D is sized to carry the Turbofan E33D5 convection oven, matching its 610mm width, hold below, bake above. Contact us to price the combination together.
What trays does the Turbofan H10D take?
It holds 10 x 1/1 GN Gastronorm pans with 74mm spacing between shelves, and the side racks are removable for cleaning.
Turbofan H series holding cabinets compared
| Model | Capacity | Width | Height | Pairs with | Price |
|---|---|---|---|---|---|
| H8D-UC | 8 x GN | 610mm | 810mm UC | E33D5 | $4,690 |
| H10D | 10 x GN | 610mm | 1015mm | E33D5 | $4,690 |
| H8D-FS-UC | 8 full size | 735mm | 810mm UC | E32D4, G32D4 | $4,890 |
| H10D-FS | 10 full size | 735mm | 1015mm | E32D4, G32D4 | $4,980 |
All prices exclude GST.
What warranty comes with the Turbofan H10D?
24 months parts and labour, backed by Moffat's Australia wide service network.
Warranty and support
- 24 months parts and labour warranty by Moffat
- Moffat national service and spare parts network
