Product Overview
| Model | MX55AT7R |
| Type | Reach-in chiller/freezer |
| Trays | 15 x 1/1 GN |
| Bakery trays | Fits 600 x 400mm |
| Spacing | 70mm or 35mm |
| Chill | 55kg per cycle |
| Freeze | 20kg per cycle |
| Controls | 7 inch touch screen |
| Probe | 3 point core |
| Programs | 40 |
| Door | Right hinge |
| Ambient | 15 to 32°C |
| Refrigerant | R455A |
| Power | 15A 240V |
| Rating | 2.48kW |
| Weight | 160kg |
| Width | 770mm |
| Depth | 790mm |
| Height | 1925mm |
| Feet | 150 to 180mm |
| Made by | Friginox |
| Made in | France |
| Warranty | 2 years on site |
Specifications from the Moffat Australia MX55AT7R spec sheet (PDF download).

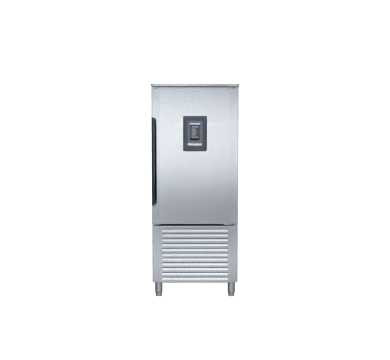

The Friginox MX55AT7R is a 15 tray reach-in blast chiller and freezer that chills 55kg or freezes 20kg per cycle. It holds 15 x 1/1 GN trays, runs off a 7 inch touch screen with a 3 point core probe and 40 programmable cycles, and runs on a 15A 240V single phase supply. Made by Friginox in France, distributed and serviced in Australia by Moffat.
Best for: Larger kitchens, caterers and cook chill operations that need 15 trays on single phase power.
MX55AT7R overview
This is the 15 tray cabinet, 1925mm high on the same 770mm x 790mm footprint. It is the largest unit in the range on single phase power. The MX45AT7R below it takes 10 trays, and the MX75AT7R is the same cabinet on three phase with 75kg chill and 35kg freeze.
How the MX55AT7R chills
The air cooled condensing unit drives a double air flow evaporator across the trays. Pick hard or soft chill, or hard or soft freeze, and run it on the 3 point core probe or on the timer. There is also a self adaptive intelligent chilling mode. A pre-chill key gets the cabinet cold before you load, and at the end of every cycle it drops into hold mode on its own.
The fans stop as soon as the door opens, and the door frame is heated to cut condensation round the seal. An integrated latch airs the cabinet out while it is not in use. Inside and out is 304 stainless steel with 60mm of foam insulation. It runs on R455A refrigerant.
Which Friginox blast chiller do I need?
They all run on R455A and take 1/1 GN trays. The difference is tray count, chilling capacity, controls and power.
| Model | MX45AT7R | MX55AT7R | MX75AT7R |
| Trays | 10 x 1/1 GN | 15 x 1/1 GN | 15 x 1/1 GN |
| Chill | 45kg | 55kg | 75kg |
| Freeze | 20kg | 20kg | 35kg |
| Controls | Touch screen | Touch screen | Touch screen |
| Core probe | 3 point | 3 point | 3 point |
| Power | 15A 240V | 15A 240V | 20A 400V 3 phase |
| Width | 770mm | 770mm | 770mm |
| Height | 1565mm | 1925mm | 1925mm |
| Depth | 790mm | 790mm | 790mm |
| Weight | 160kg | 160kg | 185kg |
Simple to use
The 7 inch touch screen has large keys that make it easy to use. Save up to 40 programs, and the favourites key gives shortcuts to the last 9 used. Extra functions cover ice cream hardening, ventilated drying, multiple timers with customisable phases and raw fish sanitation. Defrost is manual with automatic time control.
Options
Friginox offers a USB connection, a UV sterilisation lamp that switches off with the door open, thawing and defrosting with the door closed and a variable speed drive on the evaporator fan. These are factory options, so just let us know which you want when you order.
Warranty and support
2 years on site parts and labour by Moffat Australia nationwide. See our warranty page for the details.
Frequently asked questions
Who makes the Friginox MX55AT7R?
Friginox makes it in France. Moffat distributes it in Australia and looks after warranty and service.
What is the difference between the MX55AT7R and the MX45AT7R?
The MX45AT7R takes 10 trays, chills 45kg and freezes 20kg per cycle and stands 1565mm high. The MX55AT7R takes 15 trays, chills 55kg and freezes 20kg.
What is the difference between the MX55AT7R and the MX75AT7R?
The MX75AT7R is the same 15 tray cabinet, 1925mm high. It chills 75kg and freezes 35kg per cycle on 20A 400V three phase. The MX55AT7R chills 55kg and freezes 20kg on 15A 240V.
How much can the MX55AT7R chill and freeze?
Up to 55kg chilled or 20kg frozen per cycle. Real loads vary with the food, how thick it is and the container it sits in.
What trays does it take?
15 x 1/1 GN trays on removable, adjustable runners. The runners also take 600 x 400mm bakery trays. Set them for 15 positions at 70mm or 35 at 35mm.
Does it have a core probe?
Yes, a 3 point core temperature probe. You can run each cycle on the probe or on the timer.
Can I get a left hinge door?
Yes. It comes right hinged as standard. Left hinge is available, just let us know which when you order.
What power does it need?
A 15A 240V single phase supply. It draws 2.48kW.
What room temperature can it run in?
Friginox rates it for an ambient temperature of 15°C to 32°C. It has an air cooled condensing unit, so give it room to breathe and keep it away from fryers and ovens.
Does it need a drain?
Friginox lists a water runoff with a trap on this model. Check the drain connection with your plumber before it goes in.
What comes with the MX55AT7R?
The cabinet, 15 pairs of shelf runners and the 3 point core probe.
How much is delivery on the MX55AT7R?
Delivery is typically $120 plus GST. Use the Freight Cost Guide button on this page for the exact price to your postcode, including whether a tailgate is needed.
Do you sell scratch and dent units?
Sometimes. These are Moffat units with freight damage or ex-display, subject to availability. Ask us if one is going.
