Product Overview
| Model | MX20AT7R |
| Type | Reach-in chiller/freezer |
| Trays | 5 x 1/1 GN |
| Bakery trays | 5 x 600 x 400mm |
| Spacing | 64mm or 32mm |
| Chill | 20kg per cycle |
| Freeze | 10kg per cycle |
| Controls | 7 inch touch screen |
| Probe | 3 point core |
| Programs | 40 |
| Door | Right hinge |
| Ambient | 15 to 32°C |
| Refrigerant | R455A |
| Power | 10A 240V |
| Rating | 1.6kW |
| Weight | 125kg |
| Width | 770mm |
| Depth | 790mm |
| Height | 945mm |
| Feet | 150 to 180mm |
| Made by | Friginox |
| Made in | France |
| Warranty | 2 years on site |
Specifications from the Moffat Australia MX20AT7R spec sheet (PDF download).

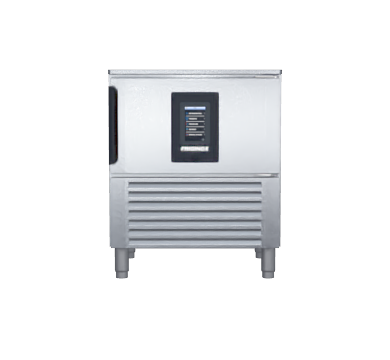

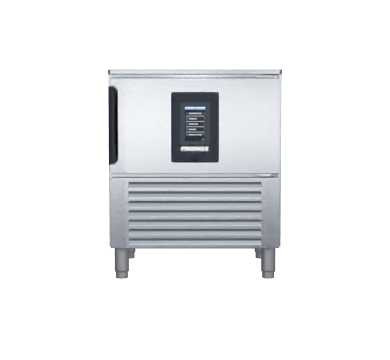

The Friginox MX20AT7R is a 5 tray reach-in blast chiller and freezer that chills 20kg or freezes 10kg per cycle. It holds 5 x 1/1 GN trays, runs off a 7 inch touch screen with a 3 point core probe and 40 programmable cycles, and runs on a 10A 240V single phase supply. Made by Friginox in France, distributed and serviced in Australia by Moffat.
Best for: Smaller kitchens, cafes and takeaways that want full touch screen and probe control in a compact cabinet.
MX20AT7R overview
This is the entry point to the Friginox touch screen range. It sits in the same 770mm x 790mm x 945mm cabinet as the timer controlled MX15-5AECR, but adds the touch screen, core probe and a fifth tray. The MX20AENCT7R is the same 20kg unit built to fit into a bench line. If you need more capacity, the MX30AT7R goes to 10 trays.
How the MX20AT7R chills
The air cooled condensing unit drives a double air flow evaporator across the trays. Pick hard or soft chill, or hard or soft freeze, and run it on the 3 point core probe or on the timer. There is also a self adaptive intelligent chilling mode. A pre-chill key gets the cabinet cold before you load, and at the end of every cycle it drops into hold mode on its own.
The fans stop as soon as the door opens, and the door frame is heated to cut condensation round the seal. An integrated latch airs the cabinet out while it is not in use. Inside and out is 304 stainless steel with 60mm of foam insulation. It runs on R455A refrigerant.
Which Friginox blast chiller do I need?
They all run on R455A and take 1/1 GN trays. The difference is tray count, chilling capacity, controls and power.
| Model | MX15-5AECR | MX20AT7R | MX20AENCT7R | MX30AT7R |
| Trays | 4 x 1/1 GN | 5 x 1/1 GN | 5 x 1/1 GN | 10 x 1/1 GN |
| Chill | 15kg | 20kg | 20kg | 30kg |
| Freeze | 5kg | 10kg | 10kg | 15kg |
| Controls | Timer | Touch screen | Touch screen | Touch screen |
| Core probe | No | 3 point | 3 point | 3 point |
| Install | Freestanding | Freestanding | Built-in | Freestanding |
| Power | 10A 240V | 10A 240V | 10A 240V | 15A 240V |
| Width | 770mm | 770mm | 900mm | 770mm |
| Height | 945mm | 945mm | 820mm | 1565mm |
| Depth | 790mm | 790mm | 695mm | 790mm |
| Weight | 120kg | 125kg | 125kg | 150kg |
Simple to use
The 7 inch touch screen has large keys that make it easy to use. Save up to 40 programs, and the favourites key gives shortcuts to the last 9 used. Extra functions cover ice cream hardening, ventilated drying, multiple timers with customisable phases and raw fish sanitation. Defrost is manual with automatic time control.
Options
Friginox offers a USB connection, a UV sterilisation lamp that switches off with the door open, thawing and defrosting with the door closed and a variable speed drive on the evaporator fan. These are factory options, so just let us know which you want when you order.
Warranty and support
2 years on site parts and labour by Moffat Australia nationwide. See our warranty page for the details.
Frequently asked questions
Who makes the Friginox MX20AT7R?
Friginox makes it in France. Moffat distributes it in Australia and looks after warranty and service.
What is the difference between the MX20AT7R and the MX15-5AECR?
The MX15-5AECR is a timer controlled economy unit with no touch screen or core probe. It takes 4 trays and does 15kg chill or 5kg freeze. The MX20AT7R adds the touch screen, the 3 point probe and 40 programs.
What is the difference between the MX20AT7R and the MX20AENCT7R?
The MX20AENCT7R is the built-in version of the MX20, 900mm wide and 820mm high, designed to be built in on 5 sides. Capacity and controls are the same as the MX20AT7R.
What is the difference between the MX20AT7R and the MX30AT7R?
The MX30AT7R takes 10 trays, chills 30kg and freezes 15kg per cycle, runs on 15A 240V and stands 1565mm high. The MX20AT7R takes 5 trays, chills 20kg and freezes 10kg, on 10A 240V.
How much can the MX20AT7R chill and freeze?
Up to 20kg chilled or 10kg frozen per cycle. Real loads vary with the food, how thick it is and the container it sits in.
What trays does it take?
5 x 1/1 GN trays on removable, adjustable runners, or 5 x 600 x 400mm bakery trays. Set them for 5 positions at 64mm or 9 at 32mm.
Does it have a core probe?
Yes, a 3 point core temperature probe. You can run each cycle on the probe or on the timer.
Can I get a left hinge door?
Yes. It comes right hinged as standard. Left hinge is available, just let us know which when you order.
What power does it need?
A 10A 240V single phase supply. It draws 1.6kW.
What room temperature can it run in?
Friginox rates it for an ambient temperature of 15°C to 32°C. It has an air cooled condensing unit, so give it room to breathe and keep it away from fryers and ovens.
What comes with the MX20AT7R?
The cabinet, 5 pairs of shelf runners and the 3 point core probe.
How much is delivery on the MX20AT7R?
Delivery is typically $120 plus GST. Use the Freight Cost Guide button on this page for the exact price to your postcode, including whether a tailgate is needed.
Do you sell scratch and dent units?
Sometimes. These are Moffat units with freight damage or ex-display, subject to availability. Ask us if one is going.
