Product Overview

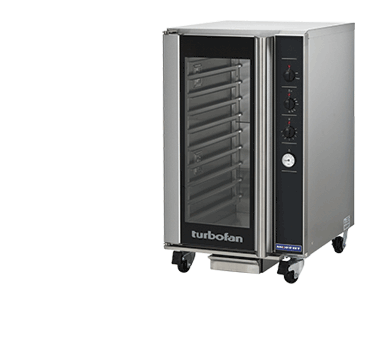

The Turbofan P10M is a dual function prover and holding cabinet from Moffat, holding 10 x 1/1 GN pans in a compact 610mm wide cabinet. Switch it between Prove mode for raising dough with heat and humidity, and Hold mode for keeping cooked food at serving temperature. It is sized to sit under a Turbofan E33D5 convection oven, matching its 610mm width for a complete baking station in the narrowest possible footprint, or roll anywhere on its castors as a standalone unit.

Turbofan provers are designed and manufactured by Moffat and backed by Moffat's Australia wide service and spare parts network. The P10M runs a gentle low velocity fan, mechanical thermostat from 20 to 85 degrees and humidity control fed by an auto fill water tank that lifts out for cleaning without tools. Full double skin stainless construction keeps the heat in and the running costs down, and at 1.5kW it plugs straight into a standard power point.

Best for: Cafes and bakeries pairing with the E33D5 that want proving and hot holding in just 610mm of width.

Key features

Tray capacity	10 x 1/1 GN pans
Tray spacing	74mm
Modes	Off, Prove and Hold selection
Thermostat	Mechanical thermostat
Temperature range	20°C to 85°C
Humidity	Humidity level control with auto fill water system
Water tank	Removable, no tools
Fan system	Low velocity circulation fan
Construction	Full double skin, 304 stainless interior
Thermometer	Cabinet temperature display
Electrical supply	240V, 1.5kW, 6.3A
Electrical connection	10A cordset fitted
Water connection (optional)	Cold water 3/4" BSP male
Water filter (optional)	3M Cuno kit
Lighting	Dual halogen cabinet lamps
Door	Side-hinged glass door
Hinge	Standard LH hinge door
Door option	Door field convertible to RH
Mobility	4 x 76mm castors, front locking
External width	610mm
External depth	680mm
External height	1015mm (76mm castors)
Matches under	Turbofan E33D5 oven
Nett weight	77.5kg
Manufacturer	Moffat
Made in	New Zealand
Warranty	24 months parts and labour by Moffat

Frequently asked questions

What does a prover and holding cabinet do?

Two jobs in one cabinet. In Prove mode it holds the gentle warmth and humidity that dough needs to rise properly before baking, croissants, bread, pizza bases and buns. In Hold mode it keeps cooked food at safe serving temperature without drying it out. If you bake in the morning and hold food through service, one cabinet covers both.

Does the Turbofan P10M need special electrical installation?

No. At 1.5kW drawing 6.3A, the P10M comes with a 10A cordset fitted and plugs straight into a standard power point, no electrician needed.

Can an oven sit on top of the P10M?

Yes. The P10M is sized to carry the Turbofan E33D5 convection oven on top, matching its 610mm width, prove underneath, bake above, 15 trays of capacity in the narrowest footprint in the range. Contact us to price the oven and prover combination together.

Does the P10M need a water connection?

No. The humidity system runs from a built in auto fill water tank that lifts out for cleaning without tools. If you want it plumbed, there is an optional cold water 3/4" BSP connection and an optional 3M Cuno water filter kit.

What trays does the Turbofan P10M take?

It holds 10 x 1/1 GN Gastronorm pans with 74mm spacing between shelves, and the rack supports are fully removable for cleaning.

Turbofan P series provers and holding cabinets compared

Model	Capacity	Width	Pairs with	Price
P8M	8 full size	735mm	E32D4, G32D4	$4,850
P12M	12 full size	735mm	E32D4, G32D4	$5,340
P10M	10 x GN	610mm	E33D5	$5,190
P85M8	8 x 406x736	910mm	E35D6-30	$5,350
P85M12	12 x 406x736	910mm	E35D6-30	$5,850
