Product Overview

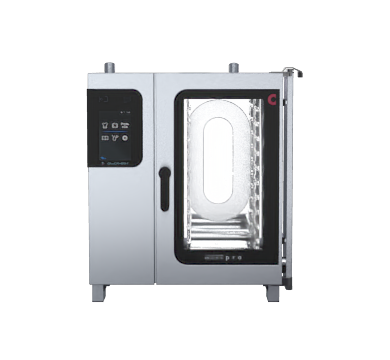

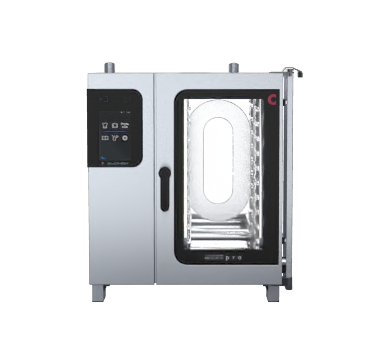

The Convotherm CXEBT10.10D is an 11 tray electric boiler combi oven built for kitchens that need serious daily output without stepping up to a wider cabinet. It holds 11 x GN 1/1 trays on 68mm spacing, runs on a high performance boiler generating steam outside the cooking chamber for consistent saturation, and adds a disappearing door that slides fully down the right hand side of the cabinet, clearing the doorway completely in tight galley layouts.

Convotherm combi ovens are manufactured in Germany and distributed in Australia by Moffat, backed by Moffat's Australia wide service and spare parts network. The CXEBT10.10D suits busy commercial kitchens, function catering and multi-site operators who need reliable steam, combi and convection cooking in one footprint. The easyTouch 10 inch capacitive touch display runs Press&Go automatic cooking with up to 399 stored profiles, and the ConvoClean+ system handles cleaning without staff standing over the oven. If bench space is limited, the disappearing door means nothing swings out into the walkway when loading or unloading trays.

Best for: commercial kitchens and function caterers needing high volume steam, combi and convection cooking with a hardwired electrical connection and a full size 11 tray capacity.

Tray capacity	11 x 1/1 GN
Tray spacing	68mm
Controls	easyTouch 10" TFT HiRes touch display (capacitive)
Cooking modes	Steam, Combi-steam, Convection
Steam generation	High performance boiler outside the cooking chamber
Programs	Multiple cycles per recipe
Cleaning	ConvoClean+ auto
HACCP	Data storage
Connectivity	WiFi and Ethernet LAN, USB port
Heating power	19.5kW
Electrical supply	400V, 3P+N+E, 19.5kW, 28.1A
Electrical connection	Hardwired
Water connection	G3/4" BSP
Fan	5 speed settings
Drain	Tundish recommended
Lighting	LED lighting in oven cavity
Door	Triple glass, disappearing door
Door hinge	Right hinged standard
Hand shower	Integrated recoil hand shower
Feet	Adjustable, 100mm
External width	933mm
External depth	792mm
External height	1058mm
Extraction	Hood required
Nett weight	147kg
Packed weight	175kg
Manufacturer	Convotherm
Made in	Germany
Warranty	24 months parts and labour by Moffat

Convotherm CSK100 Stainless Steel Stand, $1,380.00 plus GST

The CSK100 stand is purpose built to suit the CXEBT10.10D and gives a stable, correctly sized base with tray runners underneath for extra dry storage.

Stacking

A CXEBT6.10D can be stacked on top of the CXEBT10.10D as the base unit, electric on electric only. Stacking kit pricing is not yet published, contact us for a quote before ordering.

Does the CXEBT10.10D need an electrician to install?

Yes. The CXEBT10.10D is hardwired, draws 28.1A on a three phase 400V supply, and needs a licensed electrician for installation. It is not a plug-in appliance.

How does the steam generation work?

Steam is generated by a high performance boiler outside the cooking chamber, giving guaranteed saturation for steam mode and automatic moisture control in combi-steam mode. Natural Smart Climate (ACS+) manages humidity and airflow through the cook automatically, with Crisp&Tasty, BakePro and HumidityPro extra functions if finer control is needed.

What trays does it take?

The CXEBT10.10D takes 11 x GN 1/1 trays on 68mm spacing, or up to 8 x 600 x 400mm baking sheets with the appropriate rack fitted.

CXEBT10.10D or CXEBT6.10D, which one do I need?

Both run the same easyTouch controls, boiler and disappearing door. The difference is capacity: the CXEBT6.10D holds 6 x GN 1/1 trays in a smaller footprint, the CXEBT10.10D holds 11 in a taller cabinet at the same width. If you are running high covers or catering multiple services back to back, the extra 5 trays on the CXEBT10.10D make a real difference to throughput. If bench and kitchen space is tight and volume is moderate, the CXEBT6.10D is the better fit.

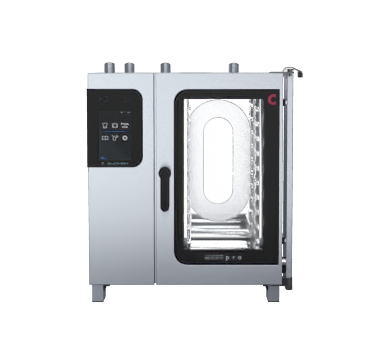

Electric or gas, should I get the CXGBT10.10D instead?

The CXGBT10.10D has the same 11 tray capacity, boiler and easyTouch controls, running on gas instead of a hardwired electrical connection. If your kitchen already has a gas line run and available capacity, gas can work out cheaper to run. If not, the electrical connection on the CXEBT10.10D is more straightforward to install.

What does the disappearing door do?

Instead of swinging open, the door slides fully down the right hand side of the cabinet and out of the way completely. This is useful in tight galley kitchens where a standard swing door would block a walkway or catch on nearby equipment when loading trays.

Do I need an exhaust hood?

Yes. Combi ovens release steam every time the door opens, so extraction is required regardless of the kW rating. Ventilation requirements can vary by council, so check your local regulations if unsure.

24 months parts and labour warranty, backed by Moffat's Australia wide service network.
National 24 hour service hotline with technicians across every state.
