Product Overview

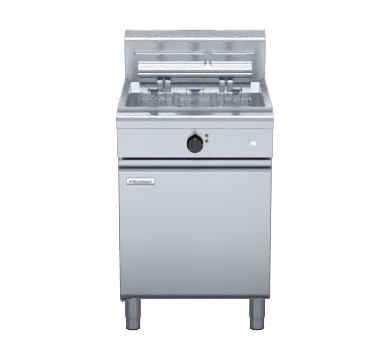

The Waldorf FN8135E is a 600mm single pan electric fryer built for high-output commercial kitchens that need serious frying capacity. With a 35 litre oil capacity, 22kW of power from two flat bar stainless steel heating elements, and a production rate of 40kg per hour, it handles continuous volume service that the 450mm models simply cannot match. The electronic thermostat keeps oil temperature precise across the 90 to 190 degree range, and three standard baskets plus a stainless steel lid are included as standard.
The step up from the 450mm FN8127E to the 600mm FN8135E is significant — 35L versus 27L oil capacity and 40kg/hr versus 31kg/hr production. If your kitchen runs heavy frying service, the FN8135E is the right choice.
The FN8135EE upgrades to a digital display with four basket timers, giving kitchen staff more precise control and consistency across multiple loads. Construction and performance are identical on both models. Call or text Sean on 0412 034 948 to discuss which suits your operation.
FN8135E key features
| Feature | Detail |
|---|---|
| Configuration | 600mm single pan |
| Oil capacity | 35 litres |
| Production rate | 40kg/hr |
| Heating elements | 2 x 11kW flat bar stainless steel |
| Total power | 22kW |
| Controls | Electronic thermostat 90-190C (FN8135E) / Digital display and 4 basket timers (FN8135EE) |
| Construction | Full 304 stainless steel |
| Drain valve | 32mm (1.25 inch) |
| Legs | 150mm, 63mm diameter heavy duty stainless steel, 2 adjustable feet |
| Baskets included | 3 standard baskets and stainless steel lid |
| Pan warranty | 10 years |
FN8135E specifications
| Specification | FN8135E | FN8135EE |
|---|---|---|
| Width | 600mm | 600mm |
| Depth | 805mm | 805mm |
| Height | 1130mm | 1130mm |
| Weight | 99kg | 99kg |
| Power supply | Three-phase | Three-phase |
| Total power | 22kW | 22kW |
| Warranty | 2 years parts and labour, 10-year pan | 2 years parts and labour, 10-year pan |
| Price (ex GST) | $7,190 | $9,190 |
Waldorf electric fryer range
| Model | Configuration | Oil capacity | Power | Production | Price (ex GST) |
|---|---|---|---|---|---|
| FN8127E | 450mm single pan | 27L | 17kW | 31kg/hr | $6,580 |
| FN8127EE | 450mm single pan digital | 27L | 17kW | 31kg/hr | $8,290 |
| FN8224E | 450mm twin pan | 12L x 2 | 17kW | 31kg/hr | $7,950 |
| FN8224EE | 450mm twin pan digital | 12L x 2 | 17kW | 31kg/hr | $9,950 |
| FN8135E | 600mm single pan | 35L | 22kW | 40kg/hr | $7,190 |
| FN8135EE | 600mm single pan digital | 35L | 22kW | 40kg/hr | $9,190 |
| FN8235E | 600mm twin pan | 17.5L x 2 | 22kW | 40kg/hr | $8,690 |
| FN8235EE | 600mm twin pan digital | 17.5L x 2 | 22kW | 40kg/hr | $10,750 |
Frequently asked questions
What is the difference between the FN8135E and FN8135EE?
Both models have identical construction, 35L oil capacity and 22kW power. The FN8135E has an electronic thermostat with a 90 to 190 degree range. The FN8135EE adds a digital display and four basket timers for more precise control across multiple simultaneous loads.
How does the FN8135E compare to the 450mm Waldorf models?
The FN8135E is the 600mm single pan model with 35L oil capacity and 40kg/hr output. The 450mm FN8127E has 27L capacity and 31kg/hr output. If your kitchen runs high volume frying service the 600mm model is the better choice. If space is tight the 450mm range fits a smaller footprint.
What is included with the FN8135E?
The FN8135E comes supplied with three standard baskets and a stainless steel lid as standard, which is one more basket than the 450mm models.
What power supply does the FN8135E require?
The FN8135E requires a three-phase power supply. A qualified electrician should confirm your kitchen has the correct supply and capacity for 22kW before installation.
Can EatTucker help with installation?
Yes. EatTucker works with Commercial Catering Services, our sister company with over 25 years experience installing and servicing commercial kitchen equipment across Sydney and beyond. Call Sean on 0412 034 948 to discuss.
