Product Overview

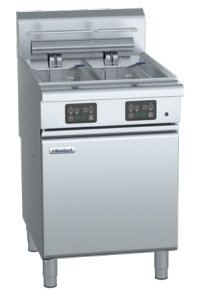

The Waldorf FN8235EE twin pan is a high performance 600mm twin pan electric fryer.

Model	FN8235EE
Type	Electric fryer
Production	40kg/hr
Elements	11kW per pan
Power	22kW
Volume	17.5L per pan
Baskets	2 large
Vat	Twin pan
Cleaning	Hinge elements
Cold zone	Yes
Control	Digital
Display	Shows actual temp
Timers	3 per pan
Range	88-190°C
Supply	415V 3ph
Feet	Legs
Width	600mm
Depth	805mm
Height	1085mm
Weight	77kg
Included	2 x baskets, lid
Made by	Moffat
Country	New Zealand

Two independent pans each run their own digital control and an 11kW flat bar element, for 22kW total and up to 40kg an hour. Each pan holds 17.5 litres, so you can fry two products at two temperatures at once, or run one pan and save oil in quieter periods.

Because it heats the oil directly with immersed flat bar elements, it recovers temperature fast between baskets. The elements hinge out and are counterbalanced for an easy clean, and a tilt switch cuts the power when they are lifted. A fail-safe over-temperature cut-out, safety start switch and power and heating indicator lights are built in.

The E stands for digital control. Instead of a dial, the FN8235EE has a digital display thermostat on each pan that gives tighter temperature accuracy and shows the actual oil temperature. It has 3 programmable product timers per pan with countdown displays and alarms: drop a basket and the timer counts down, then alerts you when it is done, and you can set each timer to a different product on a different cook time.

Waldorf 800 Series is made by Moffat. The FN8235EE runs on 415V three phase power, so an electrician makes the final connection. There is no gas, flue or conversion to deal with, which suits sites without a gas supply. The stainless steel pan carries a 10 year limited warranty.

Best for: high volume electric kitchens that need to fry two products at once, or flex between one and two pans through the day.

What is the advantage of a twin pan fryer?

Two separate pans let you fry two different products at two different temperatures at the same time, with no flavour transfer. In quieter periods you can run just one pan to save oil and power, then bring the second online when you get busy.

Is it gas or electric?

Electric. It has immersed flat bar elements and runs on 415V three phase power, so there is no gas connection, flue or gas conversion. An electrician makes the final connection.

How do you clean it?

The heating elements hinge out of the pans and are counterbalanced, so they lift clear for easy cleaning. A tilt switch cuts power to the elements when they are raised, and the pans drain through the drain valves.

What does the E digital control add?

The FN8235EE has a digital display thermostat on each pan in place of the dial, giving tighter temperature accuracy and showing the actual oil temperature. It adds 3 programmable product timers per pan with countdown and alarms.
