Product Overview

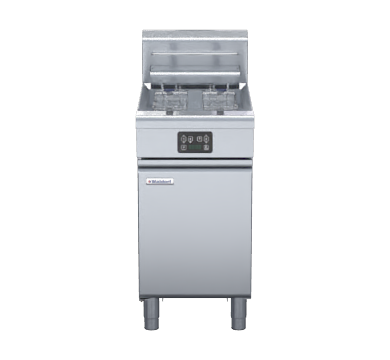

The Waldorf FN8127EE is a high performance 450mm single pan electric fryer.

Model	FN8127EE
Type	Electric fryer
Production	31kg/hr
Elements	3 x 5.66kW
Power	17kW
Volume	27 litres
Vat	Open pan
Cleaning	Hinge elements
Cold zone	Yes
Control	Digital
Display	Shows actual temp
Timers	3 programmable
Range	88-195°C
Supply	415V 3ph
Feet	Legs
Width	450mm
Depth	805mm
Height	1085mm
Weight	64kg
Included	2 x baskets, lid
Made by	Moffat
Country	New Zealand

Three 5.66kW stainless steel heating elements sit in the oil for 17kW of frying power and up to 31kg/hr from the open pan. The elements hinge out and are counterbalanced for an easy clean, and a large cool zone lets crumbs settle below the elements to keep the oil clean and lasting longer.

Because it heats the oil directly with immersed elements, it recovers temperature fast between baskets. An element tilt switch cuts the heat when the elements are lifted, and a fail-safe over-temperature cut-out and power and heating indicator lights are built in.

The E stands for digital control. Instead of a dial, the FN8127EE has a digital display thermostat that gives tighter temperature accuracy and shows the actual oil temperature as it cooks. It has 3 programmable product timers with countdown displays and alarms: drop a basket and the timer counts down, then alerts you when it is done, and you can set each timer to a different product on a different cook time.

Waldorf 800 Series is made by Moffat. The FN8127EE runs on 415V three phase power, so an electrician makes the final connection. There is no gas, flue or conversion to deal with, which suits sites without a gas supply. The stainless steel pan carries a 10 year limited warranty.

Best for: electric sites that want digital control, accurate temperature and basket timers with fast recovery.

Is it gas or electric?

Electric. It has immersed stainless steel elements and runs on 415V three phase power, so there is no gas connection, flue or gas conversion. An electrician makes the final connection.

How do you clean it?

The heating elements hinge out of the pan and are counterbalanced, so they lift clear for easy cleaning of the open pan. A tilt switch cuts power to the elements when they are raised, and the pan drains through the drain valve.

What does the E digital control add?

The FN8127EE has a digital display thermostat in place of the dial, giving tighter temperature accuracy and showing the actual oil temperature. It adds 3 programmable product timers with countdown and alarms.
