Product Overview

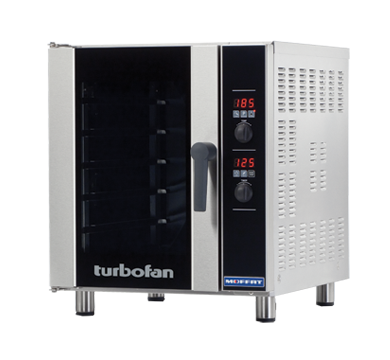

The Turbofan E33D5 is a half size digital electric convection oven from Moffat, holding 5 x 1/1 GN trays in a compact 610mm wide footprint. Part of the Turbofan Bolt 30D Series, it combines digital time and temperature controls, 20 programmable cooking modes with 3 stage cooking, 5 level moisture injection and a bi-directional reversing fan for even results across every shelf. It runs on single phase power, making it one of the easiest commercial convection ovens to install.
Turbofan ovens are designed and manufactured by Moffat and backed by Moffat's Australia wide service and spare parts network. The E33D5 suits cafes, bakeries, pubs, clubs, aged care kitchens and any venue that needs serious baking and roasting capacity without a full size oven footprint. Bench mount it on the supplied 76mm stainless steel feet or pair it with the SK33 stainless steel stand.
Best for: Cafes, bakeries and smaller commercial kitchens that want a 5 tray digital convection oven on single phase power in just 610mm of bench width.
Key features
| Tray capacity | 5 x 1/1 GN trays |
| Tray spacing | 85mm |
| Controls | Digital time and temperature |
| Programs | 20 programs with 3 stages available |
| Moisture injection | 5 levels plus manual injection |
| Fan system | Bi-directional reversing fan |
| Fan speed | Full and half speed settings |
| Heating power | 5.8kW |
| Thermostat range | 50°C to 260°C |
| Electrical | 230-240V, 25A single phase, 6.0kW |
| Electrical options | Can be split into 2 phases of 15A each |
| Oven chamber | Vitreous enamel, fully welded |
| Lighting | Dual halogen lamps |
| Door | Safe-Touch vented side hinged door |
| Inner door | Hinged glass inner door for easy cleaning |
| External width | 610mm |
| Nett weight | 71.5kg |
| Stand options | SK33 stand with 5 tray runners under |
| Stacking | DSK33 double stacking kit available |
| Optional extra | Core temperature probe kit |
| Manufacturer | Moffat |
| Warranty | 24 months parts and labour by Moffat |
SK33 stainless steel oven stand, $990.00 plus GST
The matching Turbofan SK33 stand puts the E33D5 at the perfect working height and adds tray storage underneath. All stainless steel welded frame with 5 tray runners for up to 5 x 1/1 GN pans, on 76mm swivel castors with front wheel locks. External dimensions 610mm W x 880mm H x 650mm D. Contact us to add the SK33 to your order.
Frequently asked questions
Does the Turbofan E33D5 need three phase power?
No. The E33D5 runs on standard 230-240V single phase power drawing 25A, so it needs a dedicated 25A circuit rather than a standard 10A power point. If your site does not have a 25A single phase circuit but does have a 15A three phase circuit, the E33D5 can be split across 2 phases of 15A each, a solution most suppliers do not offer. Contact us to discuss your site's power setup.
Does the E33D5 need a water connection?
Only if you want to use the moisture injection feature. The optional cold water connection is a 3/4 inch GHT male fitting. Without water connected, the oven works as a standard convection oven.
What trays does the Turbofan E33D5 take?
It holds 5 x 1/1 GN Gastronorm trays or 5 half size sheet pans, with 85mm spacing between shelves. Removable 5 position stainless steel side racks are standard.
Can the E33D5 sit on a bench?
Yes. It comes with anti-skid 76mm high adjustable stainless steel feet for bench mounting, or you can mount it on the SK33 stainless steel stand with castors and tray storage underneath.
Can two Turbofan E33 ovens be stacked?
Yes. The DSK33 double stacking kit lets you stack two E33 series ovens to double capacity in the same 610mm footprint.
What clearances does the E33D5 need?
Minimum 50mm at the rear and left side and 75mm on the right side, with 500mm recommended on the right for service access in fixed installations. Keep the oven at least 300mm from any heat source.
What warranty comes with the Turbofan E33D5?
24 months parts and labour, backed by Moffat's Australia wide service network.
Warranty and support
- 24 months parts and labour warranty by Moffat
- Moffat national service and spare parts network
