Specifications from the Moffat Australia Washtech XU spec sheet (PDF download).

The Washtech XU is a full-size commercial undercounter dishwasher with a 500mm x 500mm rack, up to 1,080 plates per hour, 2.2 litres of water per cycle and an 82°C sanitising rinse. It runs on a standard 240V 15 amp single phase supply and sells for $4,490 ex GST. Made in New Zealand by Washtech, distributed and serviced in Australia by Moffat.

Best for: Cafes, restaurants, bars, clubs and aged care kitchens that need a full-size 500mm rack undercounter dishwasher with high throughput and simple push button operation.

Washtech XU overview

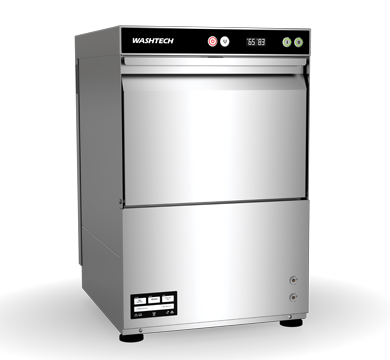

The XU steps up from the Washtech XV with a larger 500mm rack, higher throughput and a taller 350mm wash chamber, while keeping the same four push button controls and the same composite wash arm system. It suits kitchens that have outgrown a compact machine but do not need the touchscreen diagnostics of the Washtech UD. If you wash GN pans and trays, the Washtech XD has a taller 390mm chamber on the same rack.

How the Washtech XU cleans

Separated upper and lower composite wash and rinse arms with precision-moulded jets give consistent spray coverage across the full 500mm rack. Hot Rinse Retention drains dirty wash water during the cycle and replaces it continuously, so dishes are always washed in the hottest, cleanest water available. The final rinse sanitises at 82°C, meeting health regulations in every Australian state.

Which Washtech undercounter dishwasher do I need?

The XV, XU, XD and UD are all single phase 240V 15 amp machines using 2.2 litres per cycle with an 82°C rinse. The differences are rack size, chamber height, throughput, controls and detergent.

Simple to use

Like the XG and XV, the XU uses a simple, robust control system. Four push buttons: power on and off, drain, one minute cycle, two minute cycle. That is the whole panel. Behind it is Washtech's hybrid control system: two simple PCB boards, one for cycle timing and one for temperature, so there is less to go wrong and repairs are cheap. The Washtech control families are explained in our Washtech controls guide.

Warranty and support

The Washtech XU is covered by 2 years on site parts and labour from Moffat Australia, with a national service network and spare parts stocked locally. Full details on our warranty page.

Frequently asked questions

Who makes the Washtech XU?
Washtech, in New Zealand. Washtech says the company started in 1981 as Wash Systems Limited, building its first undercounter dishwasher in a single car garage, and is now the largest manufacturer of professional dishwashing equipment in Australasia. Moffat distributes and services Washtech in Australia.

What is the difference between the Washtech XU and the Washtech XV?
The XU is the bigger sibling of the XV. Same controls, same wash pump and rinse system, same composite wash arms, but it steps up to a full 500mm rack, a taller 350mm chamber and up to 1,080 plates per hour. If you need more capacity or wash taller items like platters, the XU is the step up.

What is the difference between the Washtech XU and the Washtech XD?
Both use the 500mm rack and are rated at up to 1,080 plates per hour on the same push button controls. The XD has a taller 390mm wash chamber built for GN 1/1 pans, is 50mm deeper, and uses a Smartpower mini solid detergent dispenser with concentrated tablets. The XU has a 350mm chamber and dual liquid chemical pumps for detergent and rinse aid. Both weigh 54kg and run on single phase.

What is the difference between the Washtech XU and the Washtech UD?
Same 500mm rack and footprint. The UD steps up to a touchscreen with digital diagnostics and fault alerts, a third 180 second cycle and a taller 370mm chamber, and it weighs 75kg against 54kg. The XU keeps it simple with push buttons and costs $1,390 less ex GST.

What are the hybrid controls on the Washtech XU?
Hybrid is Washtech's name for the X series control system. You get push buttons on the front, and behind them two simple PCB boards, one for cycle timing and one for temperature. There is nothing to program, and the parts are simple and cheap to replace. Our Washtech controls guide compares it with the touchscreen.

What rack size does the Washtech XU use?
The international standard 500mm x 500mm rack, the same as the Washtech UD and XD. Racks can be shared between machines if needed.

Does the Washtech XU need a hot water connection?
Hot water at 65°C is the ideal supply, through a 3/4 inch male connection at 200 to 350kPa. The XU will run on cold water, it just has to do more of the heating itself, so cycles take longer to reach the 82°C rinse.

What water flow does the Washtech XU need?
The rinse runs straight off your water supply. Washtech recommends 20 litres a minute, but in practice it works on a lot less. If flow is a real problem on your site, the Washtech UD-R and Washtech UL have a break tank and rinse pump that assure the rinse regardless of flow.

Is the drain pump built in?
Yes. The drain pump is standard, not an extra. It drains through a 25mm flexi hose, so there is no plug to pull and no gravity drain needed.

How many racks per hour does the Washtech XU wash?
The machine side of the job is 60 or 120 seconds per rack. Real throughput depends on how quickly racks are loaded and unloaded between cycles, so the rated figure of up to 1,080 plates per hour is the ceiling, not a guarantee.

Does the Washtech XU need three-phase power?
No. It runs on a standard 240V 15 amp single phase supply, so most cafe and restaurant installations need no special electrical work.

Will the Washtech XU fit under a standard bench?
Yes. At 840mm high it fits under a standard 900mm bench with room for the supply hose and drain.

Are detergent pumps included?
Yes. Dual chemical pumps for detergent and rinse aid are fitted as standard.

What comes with the Washtech XU?
The machine, one 500mm dish rack (600 70028), one 500mm cup rack (600 70029), a cutlery container (C660503), a quick connection kit with all hoses and the 15A plugset, and the user and maintenance guide. Dual chemical pumps for detergent and rinse aid are fitted.

How big is the Washtech XU packed?
Packed it is 605mm wide, 660mm deep and 940mm high, and weighs 64kg. Check your doorways and any stairs before delivery day.

How much is delivery on the Washtech XU?
Delivery is typically $120 plus GST. Use the Freight Cost Guide button on this page for the exact price to your postcode, including whether a tailgate is needed.

Is the Washtech XU WaterMark certified?
Yes. The XU is WaterMark certified and meets health regulations in all Australian states.

Can I get a scratch and dent Washtech XU?
Sometimes. Moffat occasionally has units with freight damage or ex-display units at a reduced price. Ask if you want one and we will check availability.
