Product Overview

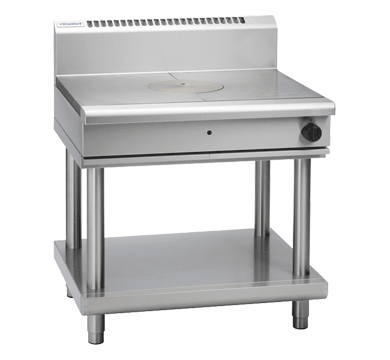

The Waldorf RN8100G-LS is a 900mm gas target top on a stainless steel leg stand — the base configuration in the Waldorf 800 Series target top range, and the Waldorf equivalent of the Blue Seal G57-LS. A dual-ring cast iron burner delivers 45 MJ/hr across a 900mm x 625mm cooking surface, with separate inner and outer rings providing accurate temperature control and differentiated heat zones from high-heat centre searing through to a gentler outer ring. A 50mm thick refractory brick lined burner box retains heat for consistent performance through service. The leg stand is heavy-duty 304 grade stainless steel with a fitted stainless steel undershelf, and the unit is supplied with both rear adjustable feet and rear rollers — fitted to preference on site. Supplied for natural gas or LPG at the same price.
Best for: Kitchens that already have combi or convection oven capacity and want a dedicated high-output target top, or operations building a modular Waldorf 800 Series suite.
Target top with an oven base
The RN8100G-LS uses the same dual-ring cast iron target top as the RN8110G and RN8110GC. If you need oven capacity beneath the target top, both oven models use the same GN 2/1 oven base as the Waldorf RN8610G stove series.
| Model | Top | Base | Our Price |
|---|---|---|---|
| RN8100G-LS | Target top | Leg stand | $8,690 |
| RN8110G | Target top | Static oven (80°C–300°C) | $10,850 |
| RN8110GC | Target top | Convection oven (50°C–320°C) | $13,250 |
Key features
| Feature | Detail |
|---|---|
| Target top burner | 45 MJ/hr dual ring cast iron |
| Burner configuration | Separate inner and outer rings, differentiated heat zones |
| Cooking surface | 900mm x 625mm (5,625cm²) |
| Centre diameter | 280mm |
| Max plate temperature | 500°C at centre |
| Burner box | 50mm thick refractory brick lined for high heat retention |
| Top construction | 3 piece heavy-duty cast iron, fully machined surface with integral spill protection |
| Spill trays | 2 vitreous enamelled, removable |
| Flame failure | Standard |
| Pilot burner | Continuous, manual ignition |
| Construction | 304 grade stainless steel, galvanised chassis, fully welded seams |
| Base | Stainless steel leg stand with fitted undershelf |
| Rear rollers | Yes, standard |
| Rear adjustable feet | Yes, standard — fitted to preference on site |
| Gas supply | Natural gas or LPG, conversion kit supplied |
| Gas connection | R 3/4 (BSP) male, optional underside connection (specify when ordering) |
| Dimensions | W 900mm x D 805mm x H 1130mm incl. splashback |
| Weight | 180kg nett / 223kg packed |
| Manufacturer | Moffat, New Zealand |
| Warranty | 2 years parts and labour by Moffat |
Optional accessories
- Joining caps
- Castors
- Plinth mounting
Warranty and support
- 2 years comprehensive parts and labour warranty
- Moffat national service and spare parts network
For enquiries please contact
Phone: Sean 0412 034948
Email: sales@eattucker.com
Freight charges dependent on weight and postcode. This is a heavy machine, please email for a freight quote before ordering.
