Product Overview

The Waldorf CH8120G-LS is a 1200mm commercial gas char grill on a leg stand, with four independently controlled burners across a heavy-duty grate.

Model	CH8120G-LS
Type	Gas chargrill
Burners	4 x 33MJ
Power	133MJ
Cooking area	1192x500mm
Control	Dial
Ignition	Piezo
Gas	Natural or LPG
Regulator	Supplied, not fitted
Gas inlet	R ¾″ BSP male
Base	Leg stand
Feet	Legs, adjustable
Width	1200mm
Depth	805mm
Height	915mm
Weight	227kg
Made by	Moffat
Country	New Zealand

Four independently controlled 33MJ burners heat a 1192mm x 500mm heavy-duty grate, giving four separate cooking zones with individual Hi-Lo gas control and full flame failure protection per burner. Top grates are reversible for level or inclined use, and the inclined position channels grease forward into the front collection channel to reduce flare-ups.

Like all Moffat gas equipment except fryers, a gas regulator is supplied with the CH8120G-LS, but it is not pre-fitted - your licensed gas fitter fits it as part of installation. Grates, radiants and burners all lift out for cleaning, and all burner box interior parts lift out for full cleaning access.

The CH8120G-LS sits on a fully modular leg stand with heavy-duty 63mm diameter stainless steel legs and adjustable feet, with a framed stand shelf underneath for extra storage. Optional drop-in griddle plates (300mm or 450mm), joining caps and a castor kit are available as extras. Waldorf 800 Series is made by Moffat in New Zealand, and runs on natural gas or LPG, specified when ordering.

Best for: high volume kitchens without an existing bench that want the widest 1200mm gas chargrill with four independent heat zones.

Does the CH8120G-LS come with a gas regulator?

Yes. A regulator is supplied with the CH8120G-LS, but it is not pre-fitted - your licensed gas fitter fits it as part of installation, same as any other Moffat gas equipment.

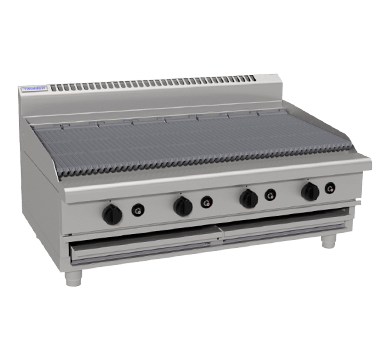

Does the CH8120G-LS come as a bench model?

Yes. The CH8120G-B is the same 1200mm chargrill on bench legs instead of a leg stand, or the CH8120G-CB on a fully enclosed cabinet base, depending on what suits your kitchen.
