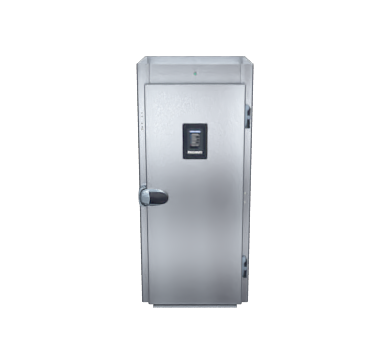

Friginox MX1AGLSTS7-CF 1 Trolley Roll-in Blast Chiller Freezer

Specifications MX1AGLSTS7-CF spec sheet

The Friginox MX1AGLSTS7-CF is a roll-in blast chiller and freezer that takes 1 x 1/1 GN trolley. It chills 80kg or freezes 30kg per cycle, runs off a 7 inch touch screen with a 3 point core probe, 40 programs and a USB HACCP recorder, and runs on three phase at 5.7kW. It is the integrated condensing unit version: the condensing unit comes with it, with pump down control, and needs installing and gassing by a refrigeration contractor. Made by Friginox in France, distributed and serviced in Australia by Moffat.

Best for: Production kitchens, caterers and cook chill operations moving 1 trolley of product at a time, with three phase power on site.

MX1AGLSTS7-CF overview

This is the integrated condensing unit version of the 1 trolley roll-in, so the condensing unit comes with it. It stands 2460mm high.

How the MX1AGLSTS7-CF chills

Pick from soft chill, hard chill, soft freeze, hard freeze and self adaptive intelligent chilling, and run each cycle on the 3 point core probe or on the timer. A pre-chill key gets the cabinet cold before you load, and at the end of every cycle it drops into hold mode on its own. Thawing and defrosting run with the door closed. Manual defrost has automatic time control.

Installation

This is the integrated condensing unit version, so the condensing unit is supplied with the cabinet as one package, with pump down control. It still needs installing and gassing with refrigerant by a refrigeration contractor. The cabinet comes assembled with a 20mm insulated stainless steel floor and ramp, expansion and solenoid valves, drip tray and piping. Refrigerant is R452A, and other gas types are available on request.

Which Friginox model do I need?

The roll-ins all run off the same 7 inch touch screen with a 3 point core probe. The difference is trolley count, inside room, capacity and power.

Simple to use

The 7 inch touch screen has large keys that make it easy to use. Save up to 40 programs, and the favourites key gives shortcuts to the last 9 used. Extra functions cover ice cream hardening, ventilated drying, multiple timers with customisable phases and raw fish sanitation. It also has a USB HACCP recorder.

Options

Friginox offers extra core probes, up to 3 in total. These are factory options, so just let us know which you want when you order.

Warranty and support

2 years on site parts and labour by Moffat Australia nationwide. See our warranty page for the details.

Frequently asked questions

Who makes the Friginox MX1AGLSTS7-CF?
Friginox makes it in France. Moffat distributes it in Australia and looks after warranty and service.

Does it come with a trolley?
No. The trolley is not included. It takes 1 x 1/1 GN trolley, with 760mm x 620mm inside and 1885mm of height.

Does it need a remote condensing unit?
It comes with one. This is the integrated condensing unit version: the condensing unit is supplied, with pump down control, and needs installing and gassing by a refrigeration contractor.

Can I get a left hinge door?
Yes. It comes right hinged as standard. Left hinge is available, just let us know which when you order.

What power does it need?
A three phase 415V supply. It draws 5.7kW, under 10A a phase.

How much can the MX1AGLSTS7-CF chill and freeze?
Up to 80kg chilled or 30kg frozen per cycle. Real loads vary with the food, how thick it is and the container it sits in.

How much is delivery on the MX1AGLSTS7-CF?
Delivery is typically $120 plus GST. Use the Freight Cost Guide button on this page for the exact price to your postcode, including whether a tailgate is needed.

Do you sell scratch and dent units?
Sometimes. These are Moffat units with freight damage or ex-display, subject to availability. Ask us if one is going.
