Product Overview

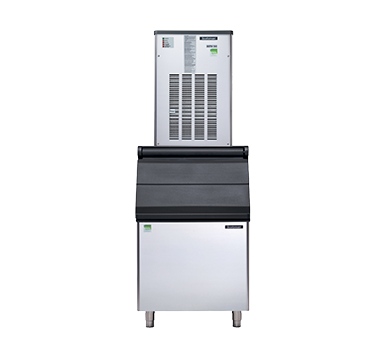

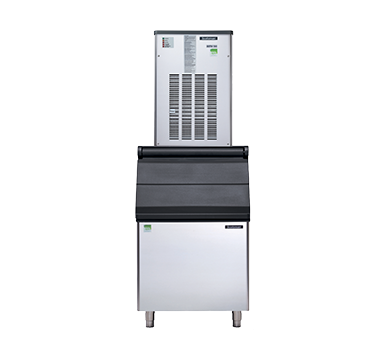

Nugget ice has become the preferred choice in high-volume hospitality settings, and for good reason. Its soft, chewable texture is ideal for blended drinks, healthcare facilities, and especially where guests are likely to chew their ice. The Scotsman MFN S 57 AS OX produces up to 305kg of nugget ice per day, delivering a consistent 1g nugget at Ø11mm x H 13mm with a residual water content of 8%.
This ice maker is a head-only modular unit; a storage ice bin is required. This does give you the opportunity to pick the best suited bin for your needs. Bins to suit are typically priced at less than $2,000.00 plus GST. Scotsman has unique sanitising features: XSafe uses UV light to sterilise the ice, while Agion antimicrobial technology coating resists microbial growth. Combined, they keep odours under control between cleaning cycles. Installation is straightforward with a basic plug-and-play setup.
Features
- 305kg of nugget ice per day
- Nugget ice: 1g, Ø11mm x H 13mm
- Choose the bin that suits your needs
- XSafe Sanitation System
- Agion Technology resists microbial growth
- Simple air-cooled operation
- Hermetic sealed compressor
- Stainless steel auger
- Freezing cylinder (evaporator)
- Plug-and-play installation
- Simple, reliable electromechanical controls
- Indicator lights showing operation status
- Alarm lights for maintenance alerts
- Fault protection built in
- Electronic rotation protection sensor
- Drive coupling monitoring
- Low-water sensor
- Stainless steel finish
- Removable panels for easy maintenance
- Simple removable air filter
- Supplied with water and drain hoses
- Includes ice scoop
Specifications
| Model | MFN S 57 AS OX |
| Ice type | Nugget ice |
| Ice size | Ø11mm x H 13mm |
| Production at 21°C | 305kg/day |
| Production at 32°C | 235kg/day |
| Width | 538mm |
| Depth | 663mm |
| Height | 794mm |
| Net weight | 94kg |
| Water consumption | 11.1 L/hr |
| Power supply | 240V, 1Ph, 10A |
| Energy consumption | 12.6kW/24hr |
| Refrigerant | R404a |
| Operating temperature | 10°C 43°C |
| Price | $10,490.00 plus GST |
Recommended Storage Bins
This unit requires a separate storage bin. Compatible Scotsman bins include:
- NB 193 with CBT 22 EFCD cover, 129kg capacity
- NB 393 with CBT 30 EFSD cover, 178kg capacity
- NB 530 with CBT 30 EFSD cover, 243kg capacity
- NB 948 with CBT 48 FMCD cover, 406kg capacity
- UBH 1100 Upright storage bin, 553kg capacity
- UBH 1600 Upright storage bin, 812kg capacity
- SIS 300 Ice shuttle storage system, 137 + 73kg capacity
- SIS 700 Ice shuttle storage system, 318 + 73kg capacity
Contact us to discuss the right bin for your production volume.
Warranty
The Scotsman MFN S 57 AS OX is covered by a 3-year parts and labour warranty, supported by Moffat's national service network.
