Product Overview

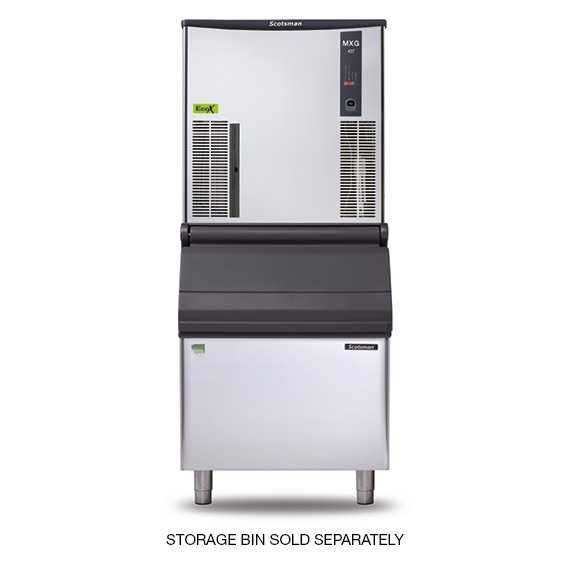

The Scotsman MXG M 437 AS OX is a modular gourmet ice maker producing up to 165kg of crystal clear medium gourmet cubes per day at 21°C ambient. Each 20g cube measures 30mm diameter x 34mm — a large, transparent, slow-melting supercube that presents superbly in glassware and suits premium bars, hotels, and upscale beverage service. The MXG M 437 AS OX is a head unit only and requires a separate storage bin — see our storage bin guide below.
Scotsman's horizontal evaporator spray-system technology produces individually frozen, transparent cubes of exceptional clarity. The XSafe EcoX Natural Sanitation System and Agion antimicrobial technology work together to resist microbial growth and suppress odours, keeping ice clean between service cycles. Simple, reliable electronic controls and external indicator lights make day-to-day operation and maintenance straightforward. Backed by a 3-year parts and labour warranty through Moffat.
Features
- Modular gourmet ice maker — head unit only, requires separate storage bin
- Medium gourmet cube 30mm diameter x 34mm, 20g
- Crystal clear transparent supercube
- Up to 165kg daily production at 21°C ambient
- Horizontal evaporator spray-system technology
- XSafe EcoX Natural Sanitation System
- Agion antimicrobial technology
- R290 hydrocarbon refrigerant
- Simple, reliable electronic controls
- External indicator lights for operation status
- Clean alert indicator
- Front access condenser air filter
- Stainless steel exterior
- Supplied with water and drain hoses
- 3-year parts and labour warranty
Specifications
| Model | MXG M 437 AS OX |
| Ice type | Medium gourmet cube |
| Cube size | 30mm diameter x 34mm, 20g |
| Production at 21°C | 165kg per 24 hours |
| Production at 32°C | 135kg per 24 hours |
| Width | 773mm |
| Depth | 705mm |
| Height | 721mm |
| Nett weight | 73kg |
| Electrical | 230-240V, 1400W, 10A |
| Connection | 10A cordset supplied |
| Water inlet | R 3/4" |
| Water pressure | 100 to 500 kPa |
| Water temperature | 5°C to 38°C |
| Operating temperature | 10°C to 43°C ambient |
| Installation clearance | 100mm rear, 150mm each side |
| Warranty | 3 years parts and labour |
Recommended Storage Bins
The MXG M 437 AS OX is a head unit only and requires a separate storage bin. Recommended bins are the NB 393 (178kg capacity) and NB 530 (243kg capacity). See our storage bin guide for full specifications and pricing.
Warranty Information
3 years parts and labour by Moffat.
