Product Overview

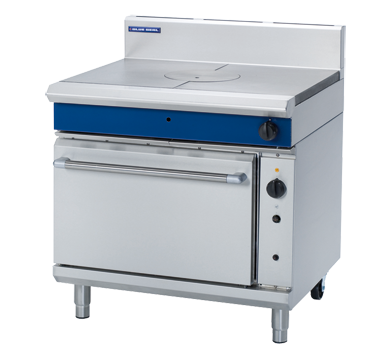

The Blue Seal G576 is a 900mm gas target top on a convection gas oven — the top-of-range option in the Blue Seal Evolution Series target top range. A dual-ring cast iron burner delivers 45 MJ/hr across a 900mm x 625mm cooking surface, with separate inner and outer rings providing accurate temperature control and differentiated heat zones from high-heat centre through to a gentler outer ring. Below, a GN 2/1 gas convection oven with a circulation fan provides even heat distribution from 50°C to 320°C, with automatic fan and burner shutoff when the door is opened — the same convection oven base as the Blue Seal G56D. Drop-down oven door, vitreous enamelled oven liner, rear rollers and all controls front-accessible. A standard 10 amp power point is required for the fan motor. Supplied for natural gas or LPG at the same price.
Best for: Commercial kitchens that need a high-output target top with the versatility of a convection oven beneath — suited to restaurants and hotels requiring consistent, even oven results across a wide temperature range.
Static or convection oven
The G576 has a convection gas oven. The G570 is the same unit with a static oven at $2,460 less, without the fan and with a temperature range of 80°C to 300°C. The convection model requires a standard 10 amp power point for the fan motor.
| Model | Oven type | Temp range | Our Price |
|---|---|---|---|
| G570 | Static gas oven | 80°C to 300°C | $10,190 |
| G576 | Convection gas oven | 50°C to 320°C | $12,650 |
Key features
| Feature | Detail |
|---|---|
| Target top burner | 45 MJ/hr dual ring cast iron |
| Total gas power | 75 MJ/hr (20.8kW) |
| Burner configuration | Separate inner and outer rings, differentiated heat zones |
| Cooking surface | 900mm x 625mm (5,625cm²) |
| Centre diameter | 280mm |
| Flame failure | Standard |
| Pilot burner | Continuous |
| Spill protection | Removable centre with spill protection design |
| Construction | 304 grade stainless steel, galvanised chassis, fully welded seams |
| Oven type | Gas convection |
| Oven capacity | GN 2/1 with 4 position racking |
| Oven burner | 30 MJ tubular under cast iron sole plate |
| Oven temp range | 50°C to 320°C |
| Convection fan | 100W motor, 200mm circulation fan |
| Fan shutoff | Automatic on door open |
| Oven liner | Fully welded vitreous enamelled |
| Oven door | Drop-down with heavy-duty spring hinge |
| Oven insulation | High density fibreglass |
| Oven rack size | 660mm x 540mm |
| Rack positions | 4 |
| Oven dimensions | 665mm W x 590mm D x 385mm H |
| Electrical | 230–240Vac, 50/60Hz, 0.13kW, 0.6A, 3-pin 10A cordset fitted |
| Rear rollers | Yes, standard |
| Gas supply | Natural gas or LPG, conversion kit supplied |
| Gas connection | R 3/4 (BSP) male, optional underside connection (specify when ordering) |
| Dimensions | W 900mm x D 812mm x H 915mm to hob (1085mm incl. splashback) |
| Weight | 265kg nett / 330kg packed |
| Manufacturer | Moffat, New Zealand |
| Warranty | 2 years parts and labour by Moffat |
Blue Seal 900mm gas target top, all configurations
All three Blue Seal 900mm target top configurations share the same dual-ring cast iron target top and 304 grade stainless construction. The difference is the base.
| Model | Top | Base | Our Price |
|---|---|---|---|
| G57-LS | Target top | Leg stand | $8,190 |
| G570 | Target top | Static oven (80°C–300°C) | $10,190 |
| G576 | Target top | Convection oven (50°C–320°C) | $12,650 |
Optional accessories
- Rear adjustable feet
- Joining caps
- Castors
Warranty and support
- 2 years comprehensive parts and labour warranty
- Moffat national service and spare parts network
