Product Overview

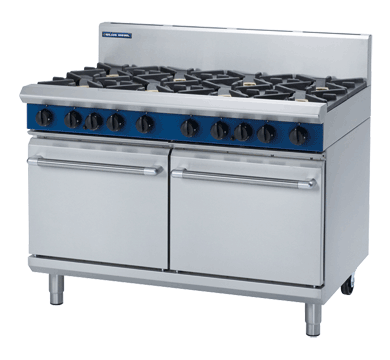

The Blue Seal G528 series are 1200mm commercial gas stoves from Moffat with two side-by-side static gas ovens, available in four cooktop configurations. Unlike the single-oven G508 series, the full 1200mm base is occupied by two independent GN 1/1 ovens each 600mm wide — giving two separate temperature zones and double the oven capacity with no storage cabinet. Each oven has its own 24 MJ burner, drop-down door, cast iron sole plate, and individual thermostatic control from 80°C to 300°C. The full 1200mm cooktop runs across the top with your choice of eight open burners, or a combination of burners and grill. All open burners are 28 MJ/hr cast stainless with flame failure standard and pilot burners optional. Rear rollers are standard. Supplied for natural gas or LPG at the same price.
Cooktop configurations
All four configurations are the same price. The grill section is standard on the right-hand side and available on the left on order at no extra cost.
Static or convection oven
The G528 series has two independent GN 1/1 static ovens side by side. For kitchens that need a single larger GN 2/1 oven, the G508 series is the same 1200mm stove with a single static oven and 300mm storage cabinet, at $1,700 less. A convection oven version is also available as the G58 series.
| Series | Oven type | Temp range | Our Price |
|---|---|---|---|
| G508 | Single static GN 2/1 | 80°C to 300°C | $11,250 |
| G58 | Single convection GN 2/1 | 50°C to 320°C | $14,150 |
| G528 | Double static 2 x GN 1/1 | 80°C to 300°C | $12,950 |
Key features
| Feature | Detail |
|---|---|
| Cooktop width | 1200mm |
| Open burner output | 28 MJ each |
| Griddle burner output | 20 MJ/hr per 300mm section |
| Total gas power | 272 MJ (G528D) to 164 MJ (G528A) |
| Burner construction | Cast stainless steel |
| Potstands | Vitreous enamelled cast iron |
| Flame failure | Standard on all burners |
| Pilot burners | Optional extra |
| Simmer plates | Optional extra (replaces potstand) |
| Griddle plates | 12mm mild steel |
| Spill trays | Stainless steel, removable |
| Oven type | Gas static (two independent ovens) |
| Oven capacity | 2 x GN 1/1, each with 4 position racking |
| Oven burner | 24 MJ each, tubular under cast iron sole plate |
| Oven temp range | 80°C to 300°C |
| Oven liner | Fully welded vitreous enamelled |
| Oven door | Drop-down with heavy-duty spring hinge |
| Oven insulation | High density fibreglass |
| Oven rack size | 495mm x 540mm |
| Rack positions | 4 |
| Oven dimensions | 500mm W x 590mm D x 385mm H (each) |
| Rear rollers | Yes, standard |
| Rear adjustable feet | Optional extra |
| Gas supply | Natural gas or LPG, conversion kit supplied |
| Gas connection | R 3/4 male |
| Dimensions | W 1200mm x D 812mm x H 915mm |
| Weight | 272kg nett / 383kg packed |
| Manufacturer | Moffat, New Zealand |
| Warranty | 2 years parts and labour by Moffat |
Blue Seal 1200mm gas stove series
All three Blue Seal 1200mm series share the same 1200mm cooktop and construction. The difference is the oven.
| Series | Oven | Temp range | Our Price |
|---|---|---|---|
| RN8810G | Single static GN 2/1 | 80°C to 300°C | $11,850 |
| G58 | Single convection GN 2/1 | 50°C to 320°C | $14,150 |
| G528 | Double static 2 x GN 1/1 | 80°C to 300°C | $12,950 |
Optional accessories
- Pilot burners
- Simmer plates (replace potstand)
- Ribbed griddle plates
- Joining caps
- Castors
- Plinth mounting
Warranty and support
- 2 years comprehensive parts and labour warranty
- Moffat national service and spare parts network
For enquiries please contact
Phone: Sean 0412 034948
Email: sales@eattucker.com
Freight charges dependent on weight and postcode. This is a heavy machine, please email for a freight quote before ordering.
