Product Overview

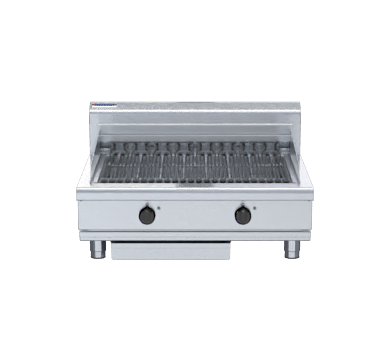

The Waldorf CH8900ED-B is a 900mm electric chargrill for bench mounting, built for kitchens that want chargrill flavour without a gas connection.

Model	CH8900ED-B
Type	Electric chargrill
Elements	8 direct contact
Power	13.4kW
Cooking area	730x590mm
Max temp	400°C
Cooking well	Water filled
Control	Dial
Supply	415V 3ph
Base	Bench
Feet	Bench legs
Width	900mm
Depth	805mm
Height	355mm
Weight	93kg
Included	Drain pan
Made by	Moffat
Country	New Zealand

Eight direct contact heating elements heat the 730mm x 590mm cooking area to up to 400°C, with no cooking grates required. Separate left and right heat zone controls let you run two temperatures at once, and indicator lights show which side is heating.

The cooking well fills with water to catch drippings, which improves performance, avoids fat fires and makes cleaning easier than a dry-catch design. A manual fill tap and a slide out stainless steel drain collection pan make servicing straightforward, and the elements hinge up on a safety support stay for cleaning underneath.

The CH8900ED-B sits on four 63mm diameter heavy-duty stainless steel bench legs with adjustable feet, for mounting straight onto an existing bench. Waldorf 800 Series is made by Moffat in New Zealand.

Best for: kitchens without gas that already have a bench to mount onto and want a wider 900mm chargrill for higher volume service.

Does the CH8900ED-B need cooking grates?

No. The direct contact elements sit right under the cooking surface, so no separate grates are required.

Why does the cooking well fill with water?

The water filled well catches drippings as you cook, which stops fat fires flaring up and keeps the grill easier to clean at the end of service. It's a manual fill, and drains through the slide out collection pan.

What's the difference between the -B, -LS and -CB versions?

All three run the same 13.4kW chargrill. The -B is bench mount only, the -LS comes on a leg stand, and the -CB comes on a fully enclosed cabinet base. Choose the -B if you already have a bench or existing stand to sit it on.
