Product Overview

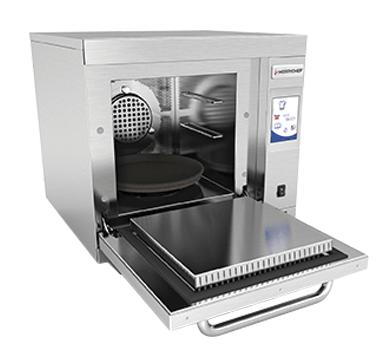

The Merrychef e3 HP is the high convection model in the Merrychef e series, with 3.0 kW of convection power — the highest convection-to-microwave ratio in the Merrychef range. While most speed ovens prioritise microwave power for fast reheating, the e3 HP is optimised for products that benefit from more convection heat — baked goods, pastries, croissants and items where even browning and a dry, crisp texture are important. Two phase 20 amp, no hood required.
Best for: Bakeries, patisseries, cafes with a strong baked goods offering and venues where pastry quality and even browning matters more than raw speed.
How the Merrychef e3 HP cooks
The e3 HP uses the same three-technology cooking system — top impingement airflow, microwave energy and convection heat — but with a 3.0 kW convection element that delivers significantly more convection energy than other models. This makes the e3 HP particularly effective for pastries, croissants, baked goods and items that need a proper oven finish rather than just rapid reheating. Menu programmes are loaded via USB with Ethernet connectivity for cloud-based management. The built-in catalytic converter means no exhaust hood is required.
Key features
| Feature | Detail |
|---|---|
| Total power | 4.7 kW |
| Microwave | 1.0 kW |
| Convection | 3.0 kW |
| Cavity size | 300 mm x 320 mm |
| Power supply | 2 phase 20 amp |
| Hood required | No — built-in catalytic converter |
| Connectivity | USB / Ethernet |
| Warranty | 2 years parts and labour by Moffat |
Full Merrychef range comparison
ConneX series WiFi connected, cloud menu management
| Merrychef | Plug | Power | Microwave | Convection | Our Price | Best For |
|---|---|---|---|---|---|---|
| ConneX 12 E | 15A single | 3.0kW | 0.8kW | 2.2kW | $16,500 | Cafes and small bars |
| ConneX 12 SP | 15A single | 3.68kW | 1.0kW | 2.2kW | $18,500 | Higher output on single phase |
| ConneX 12 HP | 2 phase 20A | 5.8kW | 2.0kW | 2.2kW | $18,900 | High power quick service |
| ConneX 16 HP | 2 phase 20A | 5.8kW | 2.0kW | 3.2kW | $22,250 | Large cavity, full size plates |
e series USB menu loading, cloud management via Ethernet
| Merrychef | Plug | Power | Microwave | Convection | Our Price | Best For |
|---|---|---|---|---|---|---|
| e1s | 15A single | 3.0kW | 0.8kW | 2.2kW | $13,700 | Entry level, single site, cafes and bars |
| e3 HP | 2 phase 20A | 4.7kW | 1.0kW | 3.0kW | $15,500 | High convection, baking and pastry |
| e4 HP | 2 phase 20A | 6.2kW | 1.5kW | 3.2kW | $24,250 | High power, large cavity, full menu range |
| e5 HP | 2 phase 20A | 6.2kW | 1.4kW | 3.2kW | $29,250 | Large cavity, high volume operations |
All prices exclude GST
Warranty and support
- 2-year comprehensive warranty on parts and labour
- Moffat national service and spare parts network
Frequently asked questions
Why does the e3 HP have less microwave power than other HP models? The e3 HP is designed for products that benefit from convection heat — baked goods, pastries and items needing a dry, crisp finish. The 3.0 kW convection output is the highest in the range. For menus focused on rapid reheating of proteins and sandwiches, the e4 HP or ConneX HP models with higher microwave power are better suited.
Does the e3 HP need a hood? No. Built-in catalytic converter — no extraction required.
What is the cavity size of the e3 HP? 300mm x 320mm — slightly different to the standard 311mm x 311mm ConneX 12 cavity.
For enquiries please contact
Phone: Sean 0412 034948
Email: sales@eattucker.com
Freight to metro areas typically $80 plus GST. Please email for your postcode.
