Product Overview

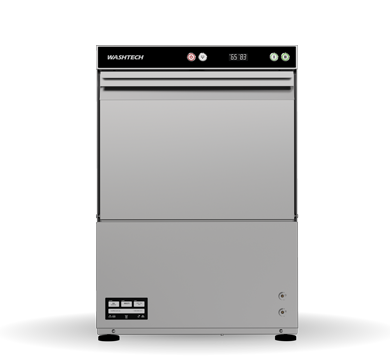

The Washtech XU is a full-size commercial undercounter dishwasher ideal for cafés, bars, restaurants and aged care facilities that need more capacity than a compact machine can deliver. Engineered in New Zealand, the XU steps up from the XV with a larger 500mm rack size, higher throughput of up to 1,080 plates per hour, and a taller wash chamber, while keeping the same simple push-button controls and proven composite wash arm system that makes the XV range so reliable.
Best for: Cafés, restaurants, bars, clubs and aged care facilities needing a full-size 500mm rack undercounter dishwasher with high throughput and simple operation.
How the Washtech XU cleans
The XU uses separated upper and lower composite wash and rinse arms with precision-moulded jets, delivering consistent spray coverage across the full 500mm rack. Hot Rinse Retention means the machine drains dirty wash water during the cycle and replaces it continuously, so dishes are always washed in the hottest, cleanest water available. The final rinse sanitises at 82°C, meeting all Australian state health regulations.
Key features
| Feature | Detail |
|---|---|
| Wash cycles | 60 and 120 seconds |
| Water consumption | 2.2 litres per cycle |
| Throughput | Up to 1,080 plates per hour |
| Rinse temperature | 82°C (sanitising) |
| Wash heating | 2.5 kW wash / 3.0 kW rinse |
| Controls | Simple push-button controls |
| Wash arms | Separated composite wash and rinse arms, upper and lower |
| Rack size | 500 mm x 500 mm (international standard) |
| Wash chamber height | 350 mm clearance |
| Dimensions | W 570 mm × H 840 mm × D 600 mm |
| Weight | 64 kg |
| Power | 240V / 15 amp single phase |
| Drainage | Hands-free drain pump, no drain plug required |
| Filtration | Double filtration — stainless steel wash and drain filter |
| WaterMark certified | Yes — meets all Australian state health regulations |
| Construction | Fully welded marine-grade stainless steel |
| Made in | New Zealand |
| Warranty | 2 years parts and labour / 5 years on the cabinet |
Simple to use
Like the XG and XV undercounter dishwashers, the XU uses a reliable simple robust control system. No complex operation just four simple push button switches. First power on and off, second a drain switch, and then two push button switches to start the cycle, one selects a one minute cycle the other a two minute cycle. The Washtech two new control families are explained further at Washtech Controls
Warranty and support
The Washtech XU is backed by Moffat Australia's national service network with parts stocked locally nationwide.
- 2-year comprehensive warranty on parts and labour
- 5-year warranty on the stainless steel cabinet
- Moffat national service and spare parts network
What's in the box
- Washtech XU commercial undercounter dishwasher
- 1 × 500 mm dish rack
- 1 × 500 mm cup rack
- 1 × cutlery container
- Stainless steel water supply hose
- Dual detergent and rinse aid pumps
- User and maintenance guide
Frequently asked questions
What is the difference between the Washtech XU and the Washtech XV? The XU is the bigger sibling of the XV. It uses the same controls, wash pump and rinse system with composite wash arms but steps up to a full 500mm rack size, a taller 350mm wash chamber, higher throughput of 1,080 plates per hour, and a larger footprint. If you need more capacity or taller items like platters, the XU is the step up.
What rack size does the Washtech XU use? The XU uses the international standard 500mm × 500mm rack — the same size as the Washtech UD, making it easy to share racks between machines if needed.
Does the Washtech XU need three-phase power? No — the XU runs on standard single-phase 240V 15-amp power, suitable for most café and restaurant installations without special electrical work.
Is the Washtech XU WaterMark certified? Yes — the XU is WaterMark certified and compliant with health regulations in all Australian states.
