Product Overview

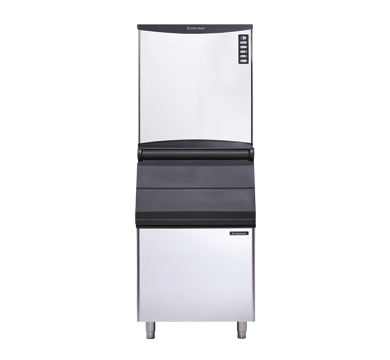

The Scotsman NWL 1008 AS OX is a high-capacity modular large dice ice machine producing up to 456kg of large dice cubes per day at 21°C ambient. Each 15g large dice cube measures 28mm x 22mm x 28mm — a premium, slow-melting cube that presents well in glassware and suits upscale bar service, spirits, and premium cold drinks. The NWL 1008 AS OX is a head unit only and requires a separate storage bin — see our storage bin guide below.

Scotsman's vertical evaporator spray-system technology delivers reliable, consistent production across a wide range of ambient and water temperatures. The XSafe Natural Sanitation System and Agion antimicrobial technology work together to resist microbial growth and suppress odours between service cycles. One-touch cleaning reduces labour time and front evaporator access simplifies servicing. A double stack option is available for operations requiring even greater production capacity. Three phase power is available for reduced energy consumption. Backed by a 3-year parts and labour warranty through Moffat.

Features

Modular large dice ice machine — head unit only, requires separate storage bin
Large dice cube 28mm x 22mm x 28mm, 15g
Up to 456kg daily production at 21°C ambient
Vertical evaporator spray-system technology
XSafe Natural Sanitation System
Agion antimicrobial technology
One-touch cleaning cycle
Auto-alert indicator lights for operation status and maintenance
Front evaporator access for easy servicing
Double stack option available
Single phase and three phase options available
T304 grade stainless steel exterior
Supplied with water and drain hoses
3-year parts and labour warranty

Specifications

Model	NWL 1008 AS OX
Ice type	Large dice cube
Cube size	28mm x 22mm x 28mm, 15g
Production at 21°C	456kg per 24 hours
Production at 32°C	380kg per 24 hours
Width	760mm
Depth	620mm
Height	800mm
Nett weight	105kg
Electrical (single phase)	230-240V, 2100W, 15A
Electrical (three phase)	400-415V, 2500W, 10A
Connection	15A cordset supplied (single phase)
Water inlet	R 3/4"
Water pressure	100 to 500 kPa
Water temperature	5°C to 38°C
Operating temperature	10°C to 43°C ambient
Installation clearance	100mm rear, 150mm each side
Warranty	3 years parts and labour

Recommended Storage Bins

The NWL 1008 AS OX is a head unit only and requires a separate storage bin. Recommended bins are the NB 393 (181kg capacity), NB 530 (243kg capacity), NB 948 with CBT 48 EAMCD cover (406kg capacity), and UBH 1100 upright storage bin (553kg capacity). See our storage bin guide for full specifications and pricing.
