Product Overview

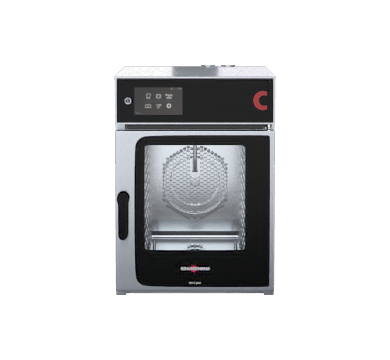

The Convotherm CMINIPRO6.10 is the full size GN step up in Convotherm's mini pro range, a compact combi oven with 6 tray capacity at 1/1 GN depth. Like the rest of the mini pro range it keeps the fan and heating element at the back of the cabinet with controls on top, letting it sit on a benchtop or stand rather than needing full floor space.

Convotherm ovens are backed by Moffat's Australia wide service and spare parts network. The 6.10 suits cafes, small kitchens and front-of-house cooking where you need full 1/1 GN tray capacity, plus Press&Go automatic cooking with up to 399 profiles.

Best for: cafes and small commercial kitchens that need full size GN trays but don't have room for a full size floor standing unit.

Key features

Tray capacity	6 x GN 1/1 flat
Tray spacing	67mm
Controls	easyTouch 7" touch display
Cooking modes	Steam, convection, combi
Programs	Multiple cycles per recipe
Cleaning	Auto ConvoClean
HACCP	Data download available
Connectivity	Ethernet interface LAN
Heating power	7.6kW
Electrical supply	3P+N+E, 7.6kW, 10.5A
Electrical connection	Hardwired
Water connection	G3/4" BSP
Fan	5 speed choices
Drain	Tundish recommended
Lighting	LED lighting in oven cavity
Door	Triple glass appliance door
Door hinge	Right hinged standard
Door option	Left-hinged $439.00 extra
External width	498mm
External depth	793mm
External height	694mm
Water filter	Supplied
Extraction	Hood required
Nett weight	73kg
Packed weight	87kg
Manufacturer	Convotherm
Made in	Germany
Warranty	24 months parts and labour by Moffat

3437054 mini pro stand

Stainless steel open stand with 10 pairs of shelf rails, sized for the 6.06 and 6.10 mini pro. $1,380.00 ex GST.

Stacking

3437091 stacking set for two 6.10 units, includes stand, brackets and 4 interlocking screws. $2,152.00 ex GST.

Does the CMINIPRO6.10 need a hood?

Yes. Combi ovens release steam when the door opens, so an extraction hood is required regardless of the 7.6kW rating. This is different to a straight convection oven, where hooding depends on kW. Ventilation requirements can vary by council, so check your local regulations if unsure.

Does it need a water and drain connection?

Yes. The 6.10 needs a permanent G3/4" water connection and a drain, since steam and combi-steam modes inject water into the cooking chamber. This applies to every model in the mini pro, maxx and maxx pro ranges, not just this one.

Is it plug-in or hardwired?

Hardwired. The 6.10 draws 10.5A on a 400-415V three phase supply and needs an electrician to connect it, the same as the rest of the mini pro range.

What's the difference between the 6.06 and 6.10?

Tray depth. The 6.06 only takes GN 2/3 trays, while the 6.10 takes full size GN 1/1 trays in the same 6 tray capacity. Same footprint width, slightly deeper cabinet and a bit more power draw to match. If you're running full size GN pans day to day, the 6.10 is the better fit.

What's the difference between the stainless and black versions?

Same oven, same specifications and capacity. The CMINIPRO6.10-B just has a black exterior finish, for $2,000 more ex GST.

24 months parts and labour warranty, backed by Moffat's Australia wide service network.
National 24 hour service hotline with technicians across every state.
