Product Overview

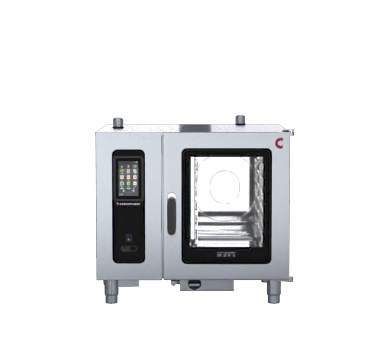

The Convotherm CMAXX6.10 is a combi oven with 7 tray capacity at full 1/1 GN depth, sitting on a benchtop as standard or floor standing when paired with the CSK100 stand. It's built in Convotherm's China factory to a simpler design than the maxx pro range, with steam generated by injecting water straight into the cooking chamber rather than through a boiler, so there's less to go wrong and less to service.
Convotherm ovens are backed by Moffat's Australia wide service and spare parts network. The 6.10 covers steam, combi-steam and convection cooking with the core features most kitchens actually use day to day, without the extra digital layer of the maxx pro range.
Best for: kitchens that want a genuine floor standing combi oven with the essentials done well, without paying for maxx pro features they won't use.
Key features
| Tray capacity | 7 x GN 1/1 |
| Tray spacing | 68mm |
| Controls | easyTouch 7" touch display |
| Cooking modes | Steam, convection, combi |
| Steam generation | Water injection |
| Programs | Multiple cycles per recipe |
| Cleaning | Auto ConvoClean |
| HACCP | Data storage |
| Connectivity | WiFi and Ethernet LAN, USB port |
| Heating power | 9.6-11.3kW |
| Electrical supply | 3P+N+E, 11.3kW, 15.7A |
| Electrical connection | Hardwired |
| Water connection | G3/4" BSP |
| Water filter | Supplied |
| Fan | 3 speed settings |
| Drain | Tundish recommended |
| Lighting | LED lighting in oven cavity |
| Door | Triple glass appliance door |
| Door hinge | Right hinged standard |
| Hand shower | Retractable, optional accessory |
| External width | 875mm |
| External depth | 797mm |
| External height | 794mm |
| Extraction | Hood required |
| Nett weight | 104kg |
| Packed weight | 136.5kg |
| Manufacturer | Convotherm |
| Made in | China |
| Warranty | 24 months parts and labour by Moffat |
CSK100 combi stand
Stainless steel stand, closed on 3 sides, 10 pairs of shelf rails, sized for the 6.10 and 10.10 maxx. $1,380.00 ex GST.
Stacking
The 6.10 can be stacked on another 6.10 or on a 10.10 using Convotherm's maxx stacking kit. A base stand is also available and recommended for 6.10 on 6.10 stacking. Contact us for pricing on these once you've confirmed the combination you need.
Does the CMAXX6.10 need a hood?
Yes. Combi ovens release steam when the door opens, so an extraction hood is required regardless of the kW rating. Ventilation requirements can vary by council, so check your local regulations if unsure.
What are the two water connections for?
One G3/4" connection feeds the steam injection system, the other feeds cleaning and the optional retractable hand shower. Both need a permanent connection or funnel waste trap on the DN50 drain, since this is a fully plumbed appliance.
Is it plug-in or hardwired?
Hardwired. The 6.10 draws up to 15.7A on a 400V three phase supply and needs an electrician to connect it.
What's the difference between the maxx and maxx pro range?
The maxx range covers steam, combi-steam and convection with fixed 3-level settings for moisture and baking, and no boiler, so there's less to service. The maxx pro range adds finer 5-level control, features like TrayView and ConvoSmoke, and a disappearing door on some models, for a higher price. If your kitchen just needs reliable combi cooking without the extra digital layer, the maxx is the more cost effective choice.
What's the difference between the 6.10 and 10.10?
Tray count and height. Both take full size GN 1/1 trays, the 10.10 holds 11 instead of 7 in a taller cabinet, with more power draw to match. Choose based on how much output your service actually needs.
- 24 months parts and labour warranty, backed by Moffat's Australia wide service network.
- National 24 hour service hotline with technicians across every state.
