Product Overview

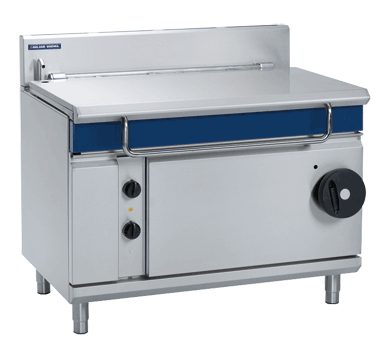

The Blue Seal G580-12 is a 1200mm gas tilting bratt pan, with a 120 litre stainless steel pan and a manual wheel tilt mechanism, built for browning, boiling, braising and everything in between.

Model	G580-12
Type	Bratt Pan
Power	Gas
Burner	90MJ
Gas	Natural or LPG
Regulator	Supplied
Gas inlet	R ¾″ BSP male
Litres	120
Pan area	1080x450mm
Control	Dial
Range	50-320°C
Tilt	Manual wheel
Water	½″
Feet	Legs, adjustable
Width	1200mm
Depth	812mm
Height	915mm
Weight	206kg
Made by	Moffat
Country	New Zealand

A bratt pan is one of the most versatile pieces of equipment in a commercial kitchen. The flat pan surface works as a griddle for browning and searing, and with the lid down it holds heat for stocks, braises and slow cooked dishes. An integrated water tap fills the pan directly, and when you're done, the whole pan tilts forward to pour straight out through the spout rather than lifting or ladling anything out by hand.

An eight pronged 90MJ burner heats the 1080mm x 450mm pan. The eight separated, spaced burner elements spread heat evenly across the cooking surface, and the 12mm thick pan base makes the heat even more consistent. It's controlled by a thermostat running 50-320°C with an over-temperature safety cut-out. The G580-12 tilts by turning a wheel on the front of the unit, which drives a worm gear to slowly lift and tilt the pan, a simple, durable mechanism with a fold-away handle when not in use.

Like all Moffat gas equipment except fryers, a gas regulator is supplied with the G580-12, but it is not pre-fitted, your licensed gas fitter fits it as part of installation. The lid itself doubles as a stainless steel bench-top workspace when closed. Blue Seal Evolution Series is made by Moffat in New Zealand.

What is a bratt pan used for?

Browning, searing and grilling on the flat pan surface, plus boiling, braising and slow cooking with the lid down. The pan tilts to pour contents straight out through the spout when you're finished.

Does the G580-12 tilt manually or electrically?

Manually, by wheel. The G580-12E is the same 1200mm gas bratt pan with an electric motor tilt instead, controlled by up and down switches, if you'd rather not wind the wheel.
