Product Overview

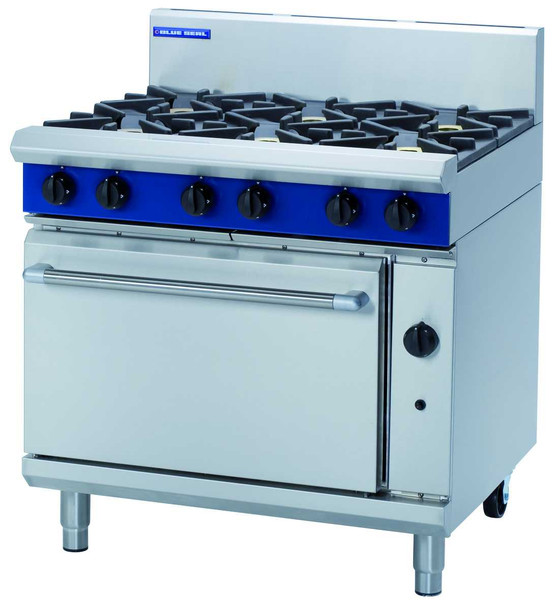

The Blue Seal G506D is a 900mm six burner commercial gas stove from Moffat, the Blue Seal equivalent of the Waldorf RN8610G. Six cast iron 28 MJ/hr dual flame ring burners deliver 198 MJ/hr total output across the full 900mm cooking surface, with a GN 2/1 static gas oven beneath. The drop-down oven door uses a heavy-duty spring hinge system sealed firmly against the oven cavity to hold temperature consistently through service. Stainless steel spill trays, rear rollers for easy cleaning access, and all controls and servicing accessible from the front. Supplied for natural gas or LPG at the same price.
Best for: Restaurant and hotel kitchens that need six open burners across a 900mm stove for high-volume sauce work, boiling and general cooking with no requirement for a grill section.
Static or convection oven
The G506D has a static gas oven. The G56D is the same stove with a convection oven, adding a 100W fan and 200mm circulation fan for more even heat distribution, a wider temperature range of 50°C to 320°C, and automatic fan and burner shutoff when the door is opened. The convection model requires a standard 10 amp power point for the fan motor.
| Model | Oven type | Temp range | Our Price |
|---|---|---|---|
| G506D | Static gas oven | 80°C to 300°C | $8,250 |
| G56D | Convection gas oven | 50°C to 320°C | $10,850 |
Contact Sean to order the G56D convection model.
Key features
| Feature | Detail |
|---|---|
| Cooktop configuration | 6 x open burners, no grill |
| Burner output | 28 MJ/hr each, dual flame ring with simmer rate |
| Total gas power | 198 MJ/hr (55kW) |
| Burner construction | Cast iron with forged brass cap |
| Potstands | Vitreous enamelled cast iron |
| Flame failure | Standard on burners |
| Pilot burners | Optional extra |
| Simmer plates | Optional extra (replaces potstand) |
| Spill trays | Stainless steel, removable |
| Oven type | Gas static (G506D) or convection (G56D) |
| Oven capacity | GN 2/1 with 4 position racking |
| Oven burner | 30 MJ tubular under cast iron sole plate |
| Oven liner | Fully welded vitreous enamelled |
| Oven door | Drop-down with heavy-duty spring hinge |
| Oven insulation | High density fibreglass |
| Oven rack size | 660mm x 540mm |
| Rack positions | 4 |
| Oven dimensions | 665mm W x 590mm D x 385mm H |
| Ignition | Piezo ignition, flame failure |
| Gas supply | Natural gas or LPG, conversion kit supplied |
| Gas connection | R 3/4 (BSP) male, optional underside connection |
| Rear rollers | Yes, for easy cleaning access |
| Servicing | All parts front accessible |
| Legs | 150mm adjustable stainless steel |
| Dimensions | W 900mm x D 812mm x H 915mm to hob |
| Weight | 209kg nett / 274kg packed |
| Manufacturer | Moffat, New Zealand |
| Warranty | 2 years parts and labour by Moffat |
Blue Seal 900mm gas stove, all configurations
All four Blue Seal 900mm configurations share the same oven, construction and build quality. The difference is in the cooktop, allowing you to match the stove to how your kitchen actually works.
| Model | Burners | Grill | Total power | Our Price | Best for |
|---|---|---|---|---|---|
| G506D | 6 | None | 198 MJ/hr | $8,250 | Maximum burner output |
| G506C | 4 | 300mm | 162 MJ/hr | $8,250 | Mixed cooking, light grill |
| G506B | 2 | 600mm | 126 MJ/hr | $8,250 | Equal burner and grill split |
| G506A | None | 900mm | 90 MJ/hr | $8,250 | Full grill, steakhouse and pub |
Convection oven versions (G56D, G56C, G56B, G56A) are available at $10,850. Contact Sean to discuss which configuration suits your kitchen.
Optional accessories
- Simmer plates (replace potstand, optional extra)
- Ribbed griddle plates
- Joining caps
- Castors
Warranty and support
- 2 years comprehensive parts and labour warranty
- Moffat national service and spare parts network
