Product Overview

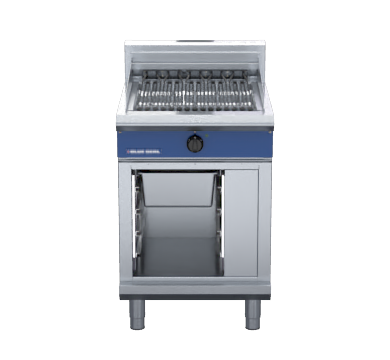

The Blue Seal E594D-CB is a 600mm electric chargrill on a fully enclosed cabinet base, built for kitchens that want chargrill flavour without a gas connection.

Model	E594D-CB
Type	Electric chargrill
Elements	5 direct contact
Power	8.4kW
Cooking area	450x590mm
Max temp	400°C
Cooking well	Water filled
Control	Dial
Supply	415V 3ph
Base	Cabinet
Feet	Front feet
Width	600mm
Depth	812mm
Height	915mm
Weight	70kg
Included	Drain pan
Made by	Moffat
Country	New Zealand

Five direct contact heating elements heat the 450mm x 590mm cooking area to up to 400°C, with no cooking grates required. A single heat zone control with a large heat resistant knob runs the whole grill, with an indicator light for power heating.

The cooking well fills with water to catch drippings, which improves performance, avoids fat fires and makes cleaning easier than a dry-catch design. A manual fill tap and a slide out stainless steel drain collection pan make servicing straightforward, and the elements hinge up on a safety support stay for cleaning underneath.

The E594D-CB sits on a fully enclosed double skin stainless steel cabinet base, with heavy-duty adjustable feet. The cabinet can take an optional GN 1/1 four position racking kit for storage underneath. Blue Seal Evolution Series is made by Moffat in New Zealand.

Best for: kitchens that want enclosed under-bench storage built into a compact 600mm chargrill footprint, rather than an open leg stand.

Does the E594D-CB need cooking grates?

No. The direct contact elements sit right under the cooking surface, so no separate grates are required.

Why does the cooking well fill with water?

The water filled well catches drippings as you cook, which stops fat fires flaring up and keeps the grill easier to clean at the end of service. It's a manual fill, and drains through the slide out collection pan.

What's the difference between the -B, -LS and -CB versions?

All three run the same 8.4kW chargrill. The -B is bench mount only, the -LS comes on an open leg stand, and the -CB comes on a fully enclosed cabinet base with storage underneath.
