Product Overview

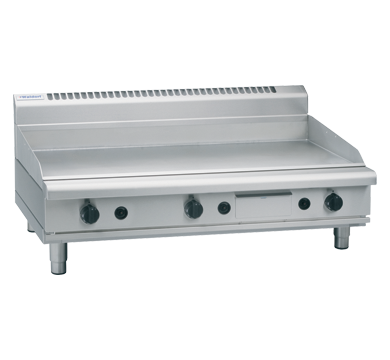

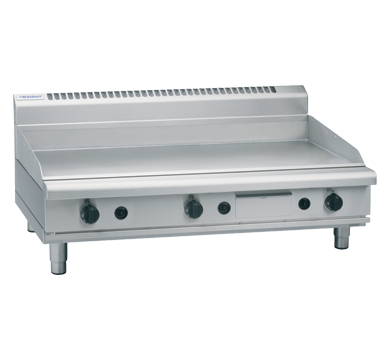

The Waldorf GP8120G-B is a 1200mm commercial gas griddle for bench mounting, with a thick machined plate and separate left, centre and right heat zones for even, consistent flat-top cooking at high volume.

Model	GP8120G-B
Type	Gas griddle
Burners	3 x 36MJ
Power	108MJ
Plate area	1192x530mm
Control	Dial
Ignition	Piezo
Gas	Natural or LPG
Regulator	Supplied
Gas inlet	R ¾″ BSP male
Base	Bench
Feet	Bench legs
Width	1200mm
Depth	805mm
Height	315mm
Weight	196kg
Made by	Moffat
Country	New Zealand

Three 36MJ burners heat a 1192mm x 530mm griddle plate 20mm thick, with separate left, centre and right heat zones each on their own 90-300°C thermostat, so you can run different heats across the width of the plate at once. The plate is top weld sealed with an overlapping finish front and rear, so there's no lip or trap for grease and food debris to catch in during cleaning. Each burner runs on full pilot and flame failure protection with piezo ignition.

The GP8120G-B is a bench model, so it sits straight onto an existing bench. Ribbed or mirror chromed plate options and joining caps are available for multi-unit runs. Waldorf 800 Series is made by Moffat in New Zealand, and comes complete with a gas type conversion kit if you ever need to switch between natural gas and LPG.

Best for: high volume kitchens that already have a bench to mount onto and want the widest 1200mm griddle with three independent heat zones.

What's the difference between a Grill top and a griddle?

Grill top, or most commonly called a grill plate, is the most common type of flat grill in use. It's the option on our gas stoves and cooktops, with a thinner plate around 12mm, a single burner per 300mm section, and a simple valve instead of a thermostat, so it's either on high or low. The plate's removable for cleaning, which leaves a gap front and back that caustic cleaning fluid can work into over time and corrode. Grease is caught in a shallow tray per 300mm section.

The GP8120G-B is a griddle, a different piece of equipment entirely. The plate is much thicker at 20mm, thermostatically controlled from 90-300°C rather than just high or low, and welded in as a sealed, non-removable unit with no gap for anything to get into. Grease drains into one deep tray under the whole plate instead of several shallow ones per section.

Does the GP8120G range come on other bases besides bench?

Yes. This GP8120G-B is the bench model specifically. The GP8120G-LS comes on an open leg stand, the GP8120G-CB comes on a fully enclosed cabinet base, and the GP8120G-RB comes on a refrigerated base with two GN 2/1 drawers underneath.

What gas type does the GP8120G-B run on?

Either natural gas or LPG, just let us know which when you order. Connection is a ¾″ BSP male gas inlet, so a licensed gas fitter makes the connection.
