Product Overview

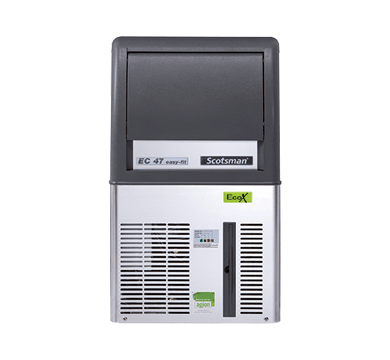

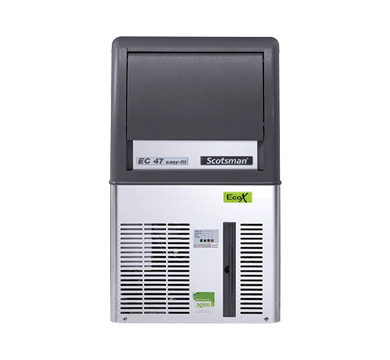

The Scotsman ECM 47 AS OX is a self-contained under counter gourmet ice machine producing up to 18kg of crystal clear medium gourmet cubes per day at 32°C ambient. Part of the EC Series, it adds XSafe UV sanitisation which continuously sanitises ice in the bin throughout the day, and PWD progressive water discharge which pumps melt water up to 15 metres — useful where gravity drainage to a floor drain is not possible. The horizontal spray evaporator system produces the distinctive clear, slow-melting medium gourmet cube — 30mm diameter, 34mm high, 20 grams each. Scotsman has been designing and manufacturing ice machines since the 1950s and remains one of the world's leading ice equipment manufacturers. Backed by a 3-year parts and labour warranty through Moffat.
Features
- Self-contained under counter ice machine
- Medium gourmet cube, 30mm x 34mm, 20g
- Up to 18kg production per day at 32°C
- 9kg integrated storage bin
- XSafe UV natural sanitation system
- PWD progressive water discharge up to 15 metres
- Horizontal ice evaporator spray technology
- Crystal clear slow-melting gourmet cubes
- R290 refrigerant gas
- Agion antimicrobial technology
- Front access condenser air filter
- Removable and washable air filter
- Disappearing door for easy bin access
- Maintenance reminder light
- Simple electromechanical controls
- Stainless steel exterior
- Fits under all standard counters
- Includes ice scoop
- Supplied with water and drain hoses
- Optional legs available
- 3-year parts and labour warranty
Specifications
| Model | ECM 47 AS OX |
| Ice type | Gourmet medium cube |
| Cube size | 30mm x 34mm, 20g |
| Production at 32°C | 18kg per 24 hours |
| Production at 21°C | 24kg per 24 hours |
| Storage bin | 9kg |
| Width | 386mm |
| Depth | 600mm |
| Height | 645mm |
| Nett weight | 37kg |
| Electrical | 230-240V, 320W, 10A |
| Connection | 10A cordset supplied |
| Refrigerant | R290 |
| Water inlet | R 3/4" |
| Water pressure | 100 to 500 kPa |
| Operating temperature | 10°C to 43°C ambient |
| Warranty | 3 years parts and labour |
Optional accessories
A water filter is recommended to protect the machine and improve ice quality. Ask us about the right filter for your installation. Optional leg kit also available.
