Product Overview

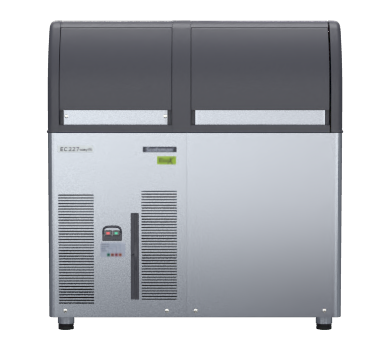

The Scotsman ECM 227 AS OX is a high capacity self-contained gourmet ice machine producing up to 130kg of crystal clear medium gourmet cubes per day at 32°C ambient. Part of the EC Series, it includes XSafe UV sanitisation which continuously sanitises ice in the bin throughout the day, and PWD progressive water discharge which pumps melt water up to 15 metres for installations where gravity drainage is not possible. Medium gourmet cube — 30mm diameter, 34mm high, 20 grams each. The 70kg integrated storage bin sits on adjustable feet included as standard. Please note the overall height of 1082mm including feet — verify bench clearance before ordering. Scotsman has been designing and manufacturing ice machines since the 1950s. Backed by a 3-year parts and labour warranty through Moffat.
Features
- High capacity self-contained gourmet ice machine
- Medium gourmet cube, 30mm x 34mm, 20g
- Up to 130kg production per day at 32°C
- 70kg integrated storage bin
- XSafe UV natural sanitation system
- PWD progressive water discharge up to 15 metres
- Horizontal ice evaporator spray technology
- Crystal clear slow-melting gourmet cubes
- R290 refrigerant gas
- Front access condenser air filter
- Removable and washable air filter
- Disappearing door for easy bin access
- Maintenance reminder light
- Simple electromechanical controls
- Stainless steel exterior
- Adjustable feet included
- Includes ice scoop
- Supplied with water and drain hoses
- 3-year parts and labour warranty
Specifications
| Model | ECM 227 AS OX |
| Ice type | Gourmet medium cube |
| Cube size | 30mm x 34mm, 20g |
| Production at 32°C | 130kg per 24 hours |
| Production at 21°C | 160kg per 24 hours |
| Storage bin | 70kg |
| Width | 1078mm |
| Depth | 719mm |
| Height | 1082mm (including feet) |
| Nett weight | 98kg |
| Electrical | 230-240V, 1400W, 10A |
| Connection | 10A cordset supplied |
| Refrigerant | R290 |
| Water inlet | R 3/4" |
| Water pressure | 100 to 500 kPa |
| Operating temperature | 10°C to 43°C ambient |
| Warranty | 3 years parts and labour |
Optional accessories
A water filter is recommended to protect the machine and improve ice quality. Ask us about the right filter for your installation.
