Product Overview

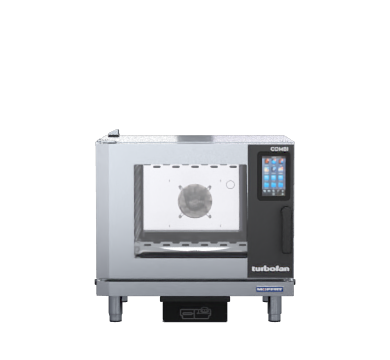

The Turbofan EC40T5 is a full size 5 tray touch screen electric combi oven that cooks on convection, on steam, or a combination of both, which is what "combi" refers to. Roasting on convection alone can dry out and shrink a roast by as much as half through moisture loss, while combi and steam modes hold that moisture in and keep yields up. It fits 5 x 1/1 GN or 600mm x 400mm trays on 70mm spacing and adds a 7 inch touch screen with programmable recipes on top of the manual cooking modes.

Turbofan combi ovens are manufactured in Italy by Lainox under license to the Moffat brand, and backed by Moffat's Australia wide service and spare parts network. The EC40T5 suits kitchens that want to save and repeat recipes rather than set times and temperatures by hand each service. Because it uses steam it needs a water supply and drain connection, unlike a standard convection oven. It can sit on the bench on its own 100mm feet or be mounted on the Turbofan SK40A stand.

Best for: kitchens that want programmable, repeatable combi cooking rather than manual dial controls.

Tray capacity	5 x 1/1 GN
Tray spacing	70mm
Cooking modes	Convection, Steam, Combi
Controls	7 inch capacitive touch screen
Range	30°C to 260°C
Programs	Multiple cycles per recipe
Automatic cooking	Picture driven preset recipes
Climate control	Autoclima management
Multilevel	Multilevel Plus
Steam control	ECOVAPOR automatic steam
Energy control	ECOSPEED automatic temperature
Core probe	Core temperature probe included
Cleaning	LCS automatic cleaning system
Connectivity	Wi-Fi and USB
HACCP	Data download available
Fan system	2 speed auto-reversing fan
Heating power	7.25kW
Electrical supply	3 phase, 7.25kW, 11A
Electrical connection	Hardwired
Water connection	2 x 3/4" BSP
Drain	Tundish recommended
Extraction	Hood required
Door	Double glazed door
Internal door	Folding internal glass
Water filter	Supplied
Oven chamber	Stainless steel
External width	777mm
External depth	744mm
External height	723mm (100mm feet)
Stand options	SK40A stainless steel
Stacking	CSK405T stacking kit
Nett weight	74kg
Manufacturer	Lainox
Made in	Italy
Warranty	24 months parts and labour

SK40A stainless steel stand, $990.00 plus GST

The SK40A stand is fully welded stainless steel with 6 tray runners suitable for 1/1 GN pans and 600mm x 400mm trays, and 4 height adjustable feet. It suits the EC40T5 and EC40T7.

CSK405T stacking kit, $1,040.00 plus GST

The CSK405T kit lets a second EC40T5 be stacked on top, doubling tray capacity in the same footprint, which suits kitchens that are short on floor space but need more oven output.

Other extras available for the EC40T5 include a hand shower with fittings, an extraction hood with air cooled condenser, bakery side racks for 600mm x 400mm trays, a right hand hinged door option, and a combi cleaner for the automatic cleaning system. Get in touch for pricing on any of these.

What is the difference between a combi oven and a convection oven?

A convection oven only cooks with dry heat, which can shrink a roast by as much as half through moisture loss. The EC40T5 can run pure convection, pure steam, or a combination of both, so it holds moisture in during roasting, reheating and proving as well as covering everything a standard convection oven does.

What does the touch screen add over the manual dial models?

The EC40T5 runs on a 7 inch touch screen rather than dials, so recipes can be saved with their own name, picture and cooking sequence and repeated with one touch. It also has automatic climate control, Wi-Fi, USB data download and an automatic cleaning system, none of which are on the manual EC40M models.

Does the EC40T5 need a water and drain connection?

Yes. It needs two cold water connections on 3/4" BSP fittings, with softened water available as an option, and a drain outlet with a tundish positioned outside the oven's footprint.

Is the EC40T5 hardwired or does it plug in?

The EC40T5 is hardwired, not a plug-in unit. It can be wired for single phase at 32A or three phase at 11A per phase, so it fits most existing kitchen supplies without needing a large power upgrade. A licensed electrician is required for installation.

Does the EC40T5 come with a hand shower?

No, on the T5 a hand shower is an optional extra rather than standard. It's still useful beyond cleaning, for general rinsing and wash down around the oven.

Does the EC40T5 need an exhaust hood?

Yes. Steam is released each time the door is opened during steam or combi cooking, so a hood is needed regardless of the oven's power rating. The Turbofan CHET extraction hood with air cooled condenser is available as an optional extra for this model.
