Product Overview

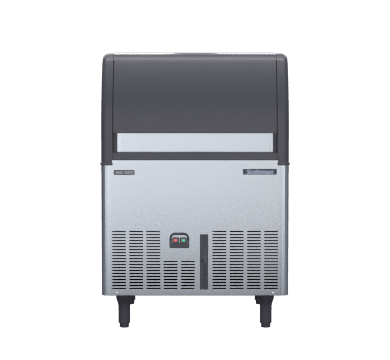

The Scotsman NU 307 AS is a self-contained under counter dice ice machine producing up to 125kg of dice cubes per day at 21°C ambient. Each 10g dice cube measures 22mm x 22mm x 22mm — a versatile, fast-chilling cube well suited to cold drinks, bar service, and food display. The 37kg integrated storage bin handles the demands of high-volume service, and the front-in, front-out airflow design allows installation in tight spaces where side or rear clearance is limited.
Scotsman's vertical evaporator spray-system technology delivers reliable, consistent production across a wide range of ambient and water temperatures. The XSafe EcoX Natural Sanitation System keeps ice clean between service cycles, while R290 hydrocarbon refrigerant reduces environmental impact. One-touch cleaning reduces labour time, and the disappearing door provides easy bin access. Backed by a 3-year parts and labour warranty through Moffat.
Features
- Self-contained under counter dice ice machine
- Dice cube 22mm x 22mm x 22mm, 10g
- Up to 125kg daily production at 21°C ambient
- 37kg integrated storage bin
- Front-in, front-out airflow for installation in tight spaces
- Vertical evaporator spray-system technology
- XSafe EcoX Natural Sanitation System
- R290 hydrocarbon refrigerant
- One-touch cleaning cycle
- Disappearing door for easy bin access
- Front access condenser air filter
- Routine maintenance alarm light
- Stainless steel exterior
- Includes ice scoop
- Supplied with water and drain hoses
- 3-year parts and labour warranty
Specifications
| Model | NU 307 AS |
| Ice type | Dice cube |
| Cube size | 22mm x 22mm x 22mm, 10g |
| Production at 21°C | 125kg per 24 hours |
| Production at 32°C | 99kg per 24 hours |
| Storage bin | 37kg |
| Width | 650mm |
| Depth | 690mm |
| Height | 1003mm (including feet) |
| Nett weight | 65kg |
| Electrical | 230-240V, 525W, 10A |
| Connection | 10A cordset supplied |
| Water inlet | R 3/4" |
| Water pressure | 100 to 500 kPa |
| Water temperature | 5°C to 38°C |
| Operating temperature | 10°C to 43°C ambient |
| Installation clearance | 100mm rear, 150mm each side |
| Warranty | 3 years parts and labour |
Optional Accessories
A water filter is recommended to protect the machine and improve ice quality. Ask us about the right filter for your installation.
Also available: NUH 307 AS — same unit producing half dice cubes (10mm x 22mm x 28mm, 6g) at the same price.
Warranty Information
3 years parts and labour by Moffat.
