Product Overview

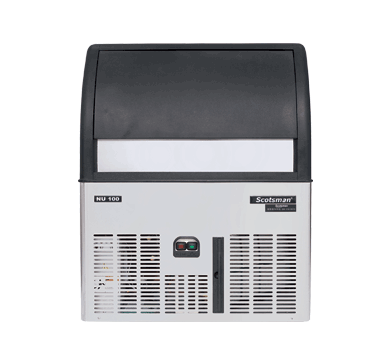

The Scotsman NU 100 AS OX is a self-contained under counter dice ice machine producing up to 45kg of dice cubes per day at 21°C ambient. Each 10g dice cube measures 22mm x 22mm x 22mm — a versatile, fast-chilling cube well suited to cold drinks, bar service, and food display. The 20kg integrated storage bin fits neatly under a standard counter, keeping ice accessible without taking up bench space.
Scotsman's vertical evaporator spray-system technology delivers reliable, consistent production across a wide range of ambient and water temperatures. The XSafe Natural Sanitation System and Agion antimicrobial technology work together to resist microbial growth and suppress odours, keeping ice clean between service cycles. One-touch cleaning reduces labour time, and the sliding disappearing door provides easy, ergonomic bin access. Backed by a 3-year parts and labour warranty through Moffat.
Features
- Self-contained under counter dice ice machine
- Dice cube 22mm x 22mm x 22mm, 10g
- Up to 45kg daily production at 21°C ambient
- 20kg integrated storage bin
- Vertical evaporator spray-system technology
- XSafe Natural Sanitation System
- Agion antimicrobial technology
- One-touch cleaning cycle
- Disappearing door for easy bin access
- Front access condenser air filter
- Routine maintenance alarm light
- Stainless steel exterior
- Fits under all standard counters
- Includes ice scoop
- Supplied with water and drain hoses
- Optional legs available
- 3-year parts and labour warranty
Specifications
| Model | NU 100 AS OX |
| Ice type | Dice cube |
| Cube size | 22mm x 22mm x 22mm, 10g |
| Production at 21°C | 45kg per 24 hours |
| Production at 32°C | 32kg per 24 hours |
| Storage bin | 20kg |
| Width | 600mm |
| Depth | 610mm |
| Height | 770mm (including feet) |
| Nett weight | 50kg |
| Electrical | 230-240V, 450W, 10A |
| Connection | 10A cordset supplied |
| Water inlet | R 3/4" |
| Water pressure | 100 to 500 kPa |
| Water temperature | 5°C to 38°C |
| Operating temperature | 10°C to 43°C ambient |
| Installation clearance | 100mm rear, 150mm each side |
| Warranty | 3 years parts and labour |
Optional Accessories
A water filter is recommended to protect the machine and improve ice quality. Ask us about the right filter for your installation.
Also available: NUH 100 AS OX — same unit producing half dice cubes (10mm x 22mm x 28mm, 6g) at the same price.
Warranty Information
3 years parts and labour by Moffat.
