Product Overview

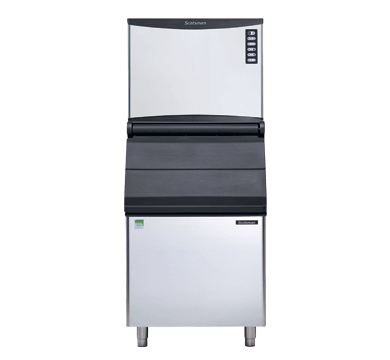

The Scotsman NWH 608 AS OX is a high-capacity modular half dice ice machine producing up to 290kg of half dice cubes per day at 21°C ambient. Each 6g half dice cube measures 10mm x 22mm x 28mm — a compact, fast-chilling cube ideal for blended drinks, cocktails, and high-volume bar service where rapid chilling and easy dispensing matter. The NWH 608 AS OX is a head unit only and requires a separate storage bin — see our storage bin guide below.

Scotsman's vertical evaporator spray-system technology delivers reliable, consistent production across a wide range of ambient and water temperatures. The XSafe Natural Sanitation System and Agion antimicrobial technology work together to resist microbial growth and suppress odours between service cycles. One-touch cleaning reduces labour time and front evaporator access simplifies servicing. A double stack option is available for operations requiring even greater production capacity. Backed by a 3-year parts and labour warranty through Moffat.

Features

Modular half dice ice machine — head unit only, requires separate storage bin
Half dice cube 10mm x 22mm x 28mm, 6g
Up to 290kg daily production at 21°C ambient
Vertical evaporator spray-system technology
XSafe Natural Sanitation System
Agion antimicrobial technology
One-touch cleaning cycle
Auto-alert indicator lights for operation status and maintenance
Front evaporator access for easy servicing
Double stack option available
T304 grade stainless steel exterior
Supplied with water and drain hoses
3-year parts and labour warranty

Specifications

Model	NWH 608 AS OX
Ice type	Half dice cube
Cube size	10mm x 22mm x 28mm, 6g
Production at 21°C	290kg per 24 hours
Production at 32°C	225kg per 24 hours
Width	760mm
Depth	620mm
Height	575mm
Nett weight	78kg
Electrical	230-240V, 1600W, 10A
Connection	10A cordset supplied
Water inlet	R 3/4"
Water pressure	100 to 500 kPa
Water temperature	5°C to 38°C
Operating temperature	10°C to 43°C ambient
Installation clearance	100mm rear, 150mm each side
Warranty	3 years parts and labour

Recommended Storage Bins

The NWH 608 AS OX is a head unit only and requires a separate storage bin. Recommended bins are the NB 393 (181kg capacity), NB 530 (243kg capacity), and NB 948 with CBT 48 EAMCD cover (406kg capacity). See our storage bin guide for full specifications and pricing.
