Product Overview

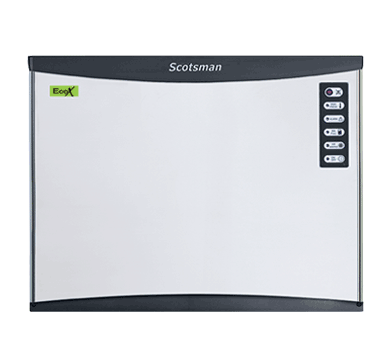

The Scotsman NWH 457 AS OX is a modular half dice ice machine producing up to 208kg of half dice cubes per day at 21°C ambient. Each 6g half dice cube measures 10mm x 22mm x 28mm — a compact, fast-chilling cube ideal for blended drinks, cocktails, and high-volume bar service where rapid chilling and easy dispensing matter. The NWH 457 AS OX is a head unit only and requires a separate storage bin — see our storage bin guide below.

Scotsman's vertical evaporator spray-system technology delivers reliable, consistent production across a wide range of ambient and water temperatures. The XSafe EcoX Natural Sanitation System and Agion antimicrobial technology work together to resist microbial growth and suppress odours between service cycles. One-touch cleaning reduces labour time and front evaporator access simplifies servicing. A double stack option is available for high-volume operations requiring greater production capacity. Backed by a 3-year parts and labour warranty through Moffat.

Features

Modular half dice ice machine — head unit only, requires separate storage bin
Half dice cube 10mm x 22mm x 28mm, 6g
Up to 208kg daily production at 21°C ambient
Vertical evaporator spray-system technology
XSafe EcoX Natural Sanitation System
Agion antimicrobial technology
R290 hydrocarbon refrigerant
One-touch cleaning cycle
Auto-alert indicator lights for operation status and maintenance
Front evaporator access for easy servicing
Double stack option available
T304 grade stainless steel exterior
Supplied with water and drain hoses
3-year parts and labour warranty

Specifications

Model	NWH 457 AS OX
Ice type	Half dice cube
Cube size	10mm x 22mm x 28mm, 6g
Production at 21°C	208kg per 24 hours
Production at 32°C	146kg per 24 hours
Width	760mm
Depth	620mm
Height	575mm
Nett weight	73kg
Electrical	230-240V, 960W, 10A
Connection	10A cordset supplied
Water inlet	R 3/4"
Water pressure	100 to 500 kPa
Water temperature	5°C to 38°C
Operating temperature	10°C to 43°C ambient
Installation clearance	100mm rear, 150mm each side
Warranty	3 years parts and labour

Recommended Storage Bins

The NWH 457 AS OX is a head unit only and requires a separate storage bin. Recommended bins are the NB 393 (181kg capacity) and NB 530 (243kg capacity). See our storage bin guide for full specifications and pricing.
