Product Overview

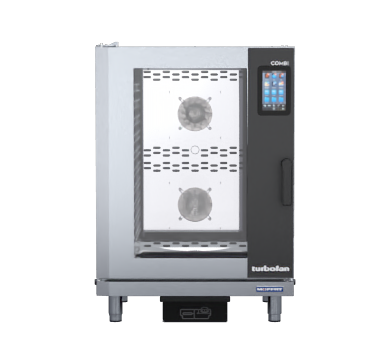

The Turbofan EC40T10 is a full size 10 tray touch screen electric combi oven that cooks on convection, on steam, or a combination of both, which is what "combi" refers to. Roasting on convection alone can dry out and shrink a roast by as much as half through moisture loss, while combi and steam modes hold that moisture in and keep yields up. It fits 10 x 1/1 GN or 600mm x 400mm trays on 70mm spacing and adds a 7 inch touch screen with programmable recipes on top of the manual cooking modes.

Turbofan combi ovens are manufactured in Italy by Lainox under license to the Moffat brand, and backed by Moffat's Australia wide service and spare parts network. The EC40T10 suits high volume kitchens that want programmable, repeatable combi cooking with the largest tray count in the touch screen 40T range below the double cavity models. Because it uses steam it needs a water supply and drain connection, unlike a standard convection oven. It can sit on the bench on its own 100mm feet or be mounted on the Turbofan SK40-10A stand.

Best for: high volume kitchens that want programmable, repeatable combi cooking with 10 tray capacity.

Tray capacity	10 x 1/1 GN
Tray spacing	70mm
Cooking modes	Convection, Steam, Combi
Controls	7 inch capacitive touch screen
Range	30°C to 260°C
Programs	Multiple cycles per recipe
Automatic cooking	Picture driven preset recipes
Climate control	Autoclima management
Multilevel	Multilevel Plus
Steam control	ECOVAPOR automatic steam
Energy control	ECOSPEED automatic temperature
Core probe	Core temperature probe included
Cleaning	LCS automatic cleaning system
Connectivity	Wi-Fi and USB
HACCP	Data download available
Fan system	2 speed auto-reversing fan
Heating power	14.5kW
Electrical supply	3 phase, 14.5kW, 22A
Electrical connection	Hardwired
Water connection	2 x 3/4" BSP
Drain	Tundish recommended
Extraction	Hood required
Door	Double glazed door
Internal door	Folding internal glass
Water filter	Supplied
Oven chamber	Stainless steel
External width	777mm
External depth	744mm
External height	1097mm (100mm feet)
Stand options	SK40-10A stainless steel
Nett weight	104kg
Manufacturer	Lainox
Made in	Italy
Warranty	24 months parts and labour

SK40-10A stainless steel stand, $990.00 plus GST

The SK40-10A stand is fully welded stainless steel with 6 tray runners suitable for 1/1 GN pans and 600mm x 400mm trays, and 4 height adjustable feet. It is purpose built for the EC40T10.

The EC40T10 can also be paired with a 5 tray EC40T5 stacked on top using the CSK405T kit, which suits kitchens that want mixed capacity rather than doubling up on 10 tray units. Other extras available include a hand shower with fittings, an extraction hood with air cooled condenser, bakery side racks for 600mm x 400mm trays, a right hand hinged door option, and a combi cleaner for the automatic cleaning system. Get in touch for pricing on any of these.

What is the difference between a combi oven and a convection oven?

A convection oven only cooks with dry heat, which can shrink a roast by as much as half through moisture loss. The EC40T10 can run pure convection, pure steam, or a combination of both, so it holds moisture in during roasting, reheating and proving as well as covering everything a standard convection oven does.

What does the touch screen add over the manual dial models?

The EC40T10 runs on a 7 inch touch screen rather than dials, so recipes can be saved with their own name, picture and cooking sequence and repeated with one touch. It also has automatic climate control, Wi-Fi, USB data download and an automatic cleaning system, none of which are on the manual EC40M models.

Does the EC40T10 need a water and drain connection?

Yes. It needs two cold water connections on 3/4" BSP fittings, with softened water available as an option, and a drain outlet with a tundish positioned outside the oven's footprint.

Is the EC40T10 hardwired or does it plug in?

The EC40T10 is hardwired, not a plug-in unit. It draws 22A per phase on three phase power and needs a licensed electrician for installation. There is no single phase option on this model, so check your site has three phase supply before ordering.

Does the EC40T10 come with a hand shower?

No, on the T10 a hand shower is an optional extra rather than standard. It's still useful beyond cleaning, for general rinsing and wash down around the oven.

Does the EC40T10 need an exhaust hood?

Yes. Steam is released each time the door is opened during steam or combi cooking, so a hood is needed regardless of the oven's power rating. The Turbofan CHET extraction hood with air cooled condenser is available as an optional extra for this model.
