Product Overview

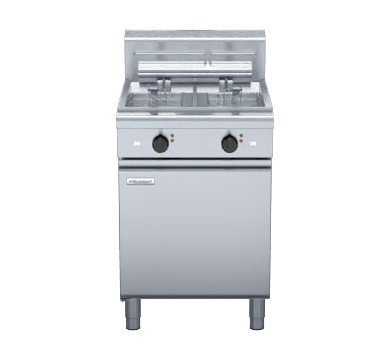

The Waldorf FN8235E is a 600mm twin pan electric fryer that combines serious output with the flexibility to fry two different products at the same time. Each pan holds 17.5 litres of oil, and with 22kW of total power and a 40kg per hour production rate, it sits at the top of the Waldorf electric fryer range. The electronic thermostat on each pan maintains precise oil temperature across the 90 to 190 degree range, and two large baskets plus a stainless steel lid are included as standard.
The twin pan configuration is the standout advantage. Running fish and chips separately, keeping gluten-free batches isolated, or frying two different products at different temperatures simultaneously — all of that is possible in a single 600mm footprint. For a high-volume kitchen that needs both capacity and flexibility, the FN8235E is the top of the Waldorf electric range.
The FN8235EE upgrades to dual digital displays with four basket timers per pan, giving complete control over multiple simultaneous loads. Call or text Sean on 0412 034 948 to discuss which model suits your kitchen.
FN8235E key features
| Feature | Detail |
|---|---|
| Configuration | 600mm twin pan |
| Oil capacity | 17.5 litres per pan (35 litres total) |
| Production rate | 40kg/hr |
| Heating elements | 2 x 11kW flat bar stainless steel per pan |
| Total power | 22kW |
| Controls | Electronic thermostat 90-190C (FN8235E) / Dual digital display and 4 basket timers (FN8235EE) |
| Construction | Full 304 stainless steel |
| Drain valve | 25mm per pan |
| Legs | 150mm, 63mm diameter heavy duty stainless steel, 2 adjustable feet |
| Baskets included | 2 large baskets and stainless steel lid |
| Pan warranty | 10 years |
FN8235E specifications
| Specification | FN8235E | FN8235EE |
|---|---|---|
| Width | 600mm | 600mm |
| Depth | 805mm | 805mm |
| Height | 1130mm | 1130mm |
| Weight | 99kg | 99kg |
| Power supply | Three-phase | Three-phase |
| Total power | 22kW | 22kW |
| Warranty | 2 years parts and labour, 10-year pan | 2 years parts and labour, 10-year pan |
| Price (ex GST) | $8,690 | $10,750 |
Waldorf electric fryer range
| Model | Configuration | Oil capacity | Power | Production | Price (ex GST) |
|---|---|---|---|---|---|
| FN8127E | 450mm single pan | 27L | 17kW | 31kg/hr | $6,580 |
| FN8127EE | 450mm single pan digital | 27L | 17kW | 31kg/hr | $8,290 |
| FN8224E | 450mm twin pan | 12L x 2 | 17kW | 31kg/hr | $7,950 |
| FN8224EE | 450mm twin pan digital | 12L x 2 | 17kW | 31kg/hr | $9,950 |
| FN8135E | 600mm single pan | 35L | 22kW | 40kg/hr | $7,190 |
| FN8135EE | 600mm single pan digital | 35L | 22kW | 40kg/hr | $9,190 |
| FN8235E | 600mm twin pan | 17.5L x 2 | 22kW | 40kg/hr | $8,690 |
| FN8235EE | 600mm twin pan digital | 17.5L x 2 | 22kW | 40kg/hr | $10,750 |
Frequently asked questions
What is the difference between the FN8235E and FN8235EE?
Both models have identical construction, 17.5L per pan oil capacity and 22kW power. The FN8235E has an electronic thermostat on each pan with a 90 to 190 degree range. The FN8235EE adds dual digital displays and four basket timers for precise control across multiple simultaneous loads.
Why choose the FN8235E twin pan over the FN8135E single pan?
Both are 600mm wide with the same 22kW power and 40kg/hr production rate. The FN8235E splits that into two 17.5-litre pans so you can fry two different products at different temperatures simultaneously. The FN8135E gives you one larger 35-litre pan for maximum single product volume. If you need to separate oils or products the twin pan is the better choice.
How does the FN8235E compare to the 450mm twin pan FN8224E?
The FN8235E is significantly more powerful — 22kW versus 17kW, 17.5L per pan versus 12L per pan, and 40kg/hr versus 31kg/hr output. If volume is the priority the 600mm twin pan is the clear choice. If footprint is the constraint the 450mm FN8224E fits a tighter space.
What power supply does the FN8235E require?
The FN8235E requires a three-phase power supply. A qualified electrician should confirm your kitchen has the correct supply and capacity for 22kW before installation.
Can EatTucker help with installation?
Yes. EatTucker works with Commercial Catering Services, our sister company with over 25 years experience installing and servicing commercial kitchen equipment across Sydney and beyond. Call Sean on 0412 034 948 to discuss.
