Product Overview

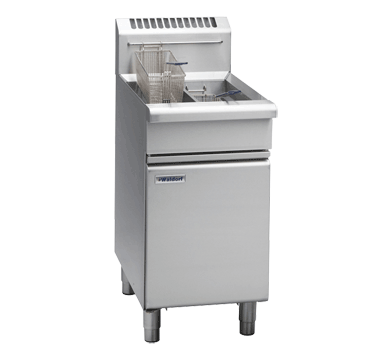

The Waldorf FN8226G is a 450mm twin pan gas fryer from Moffat — the Waldorf equivalent of the Blue Seal GT46, with the vat divided into two independent 13 litre pans each with its own infrared burner and separate temperature controls. Each vat can be set to a different temperature simultaneously, allowing chips in one pan and seafood, chicken or a different product in the other at the correct temperature — without flavour transfer. During quiet periods one vat can be shut down entirely to save gas. Compatible with the Waldorf Filtamax oil filtration system. 10 year stainless steel pan warranty. Supplied for natural gas or LPG at the same price.
Best for: Restaurants, fish and chip shops, pubs and takeaways that need to fry different products at different temperatures simultaneously in the Waldorf brand, or want the ability to run one vat during quiet periods.
Key features
| Feature | Detail |
|---|---|
| Vat configuration | 2 x independent pans — each 13 litres, separate controls |
| Total oil capacity | 26 litres (2 x 13L) |
| Burners | 2 x independent infrared burners — one per vat, 90 MJ/hr total |
| Total power | 90 MJ/hr (25 kW) |
| Controls | Independent mechanical thermostats per vat |
| Production rate | 31 kg per hour total |
| Gas supply | Natural gas or LPG — specify when ordering |
| Overheat protection | Oil level and over-temperature safety cut-out per vat |
| Drain valves | 2 x 32 mm (1¼ inch) lockable — one per vat |
| Vat design | Open stainless steel pans with cool zones |
| Oil filter | Waldorf Filtamax compatible — rolls in underneath, no separate storage |
| Pan warranty | 10 years on stainless steel pans |
| Construction | 304 grade stainless steel throughout |
| Dimensions | W 450 mm x D 805 mm x H 1130 mm including splashback |
| Weight | 81 kg nett / 129 kg packed |
| Included | 2 x chrome plated wire baskets, stainless steel lid |
| Manufacturer | Moffat, New Zealand |
| Warranty | 2 years parts and labour by Moffat |
FN8226G vs FN8226GE — mechanical or digital controls
The FN8226G uses mechanical thermostat controls. The FN8226GE is the same fryer with digital electronic controls for more precise temperature management and easier programming.
| Model | Controls | Our Price |
|---|---|---|
| FN8226G | Mechanical thermostat | $6,590 |
| FN8226GE | Digital electronic | $8,650 |
Contact Sean to order the FN8226GE.
Full Moffat gas fryer range
| Model | Brand | Width | Configuration | Power | Our Price | Best For |
|---|---|---|---|---|---|---|
| FF18 | Fastfri | 400mm | Single 18L | 90 MJ/hr | $2,310 | Budget entry |
| CF2 | Cobra | 400mm | Single 21L | 88 MJ/hr | $2,920 | Target burner |
| GT18 | Blue Seal | 400mm | Single 18L | 90 MJ/hr | $3,690 | U-burner, cool zone |
| FN8118G | Waldorf | 400mm | Single 18L | 90 MJ/hr | $3,890 | Waldorf brand |
| GT45 | Blue Seal | 450mm | Single 20L | 90 MJ/hr | $4,580 | Infrared, oil filter ready |
| FN8120G | Waldorf | 450mm | Single 20L | 90 MJ/hr | $4,790 | Australia's best selling |
| GT60 | Blue Seal | 600mm | Single 31L | 90 MJ/hr | $6,090 | Wide body, 3 baskets |
| GT46 | Blue Seal | 450mm | Split 2 x 13L | 90 MJ/hr | $6,190 | Twin vat, dual temperature |
| FN8130G | Waldorf | 600mm | Single 31L | 90 MJ/hr | $6,490 | Waldorf 600mm wide body |
| FN8226G | Waldorf | 450mm | Split 2 x 13L | 90 MJ/hr | $6,590 | Waldorf twin vat, dual temp |
| GT60 HPO | Blue Seal | 600mm | Single 31L high power | - | $8,590 | - |
| FN8130G-HPO | Waldorf | 600mm | Single high power | - | $8,870 | - |
All prices exclude GST.
Optional accessories
- Waldorf Filtamax oil filtration system
- Mobile castor kit (set of 4, 2 lockable)
- Plinth mounting
- Extra baskets
- Side splash guards
- Joining caps
Warranty and support
- 2 years comprehensive parts and labour warranty
- 10 years warranty on stainless steel pans
- Moffat national service and spare parts network
