Product Overview

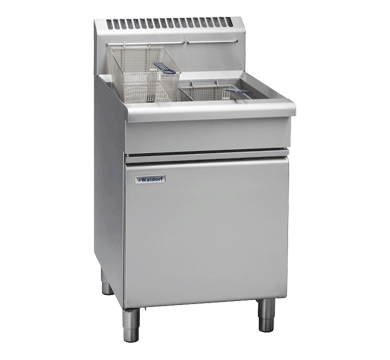

The Waldorf FN8130G is a 600mm wide body single pan gas fryer from Moffat — the same machine as the Blue Seal GT60 in Waldorf's Australian livery. Built from all 304 grade stainless steel with 2 x 45 MJ/hr patented infrared burners and 31 litres of oil capacity, the FN8130G accommodates three standard baskets simultaneously or two large baskets for bigger loads. No gas regulator required. Compatible with the Waldorf Filtamax oil filtration system that rolls in underneath and stores under the fryer. 10 year stainless steel pan warranty. Supplied for natural gas or LPG at the same price.
Best for: Busy restaurants, fish and chip shops, pub kitchens and high-volume takeaways that want the 600mm wide body capacity in the Waldorf brand with Filtamax oil filtration compatibility.
Key features
| Feature | Detail |
|---|---|
| Burners | 2 x 45 MJ/hr patented infrared burners — direct heat transfer, less flue loss |
| Oil capacity | 31 litres (46.5 lbs shortening) |
| Pan size | 515 mm x 380 mm |
| Production rate | 31 kg per hour |
| Power output | 90 MJ/hr (25 kW) |
| Gas supply | Natural gas or LPG — no gas regulator required |
| Controls | Mechanical |
| Vat design | Open stainless steel pan with large capacity cool zone |
| Basket options | 3 x standard baskets (140 x 335 x 145 mm) or 2 x large baskets (210 x 335 x 145 mm) |
| Drain valve | 32 mm (1¼ inch) |
| Oil filter | Waldorf Filtamax filtration system rolls in underneath — no separate storage required |
| Pan warranty | 10 years on stainless steel pan |
| Construction | All 304 grade stainless steel, 1.2 mm adjustable feet |
| Dimensions | W 600 mm x D 805 mm x H 1130 mm including splashback |
| Weight | 95 kg nett / 143 kg packed |
| Manufacturer | Moffat, New Zealand |
| Warranty | 2 years parts and labour by Moffat |
FN8130G vs FN8130GE — mechanical or digital controls
The FN8130G uses mechanical controls. The FN8130GE is the same fryer with digital electronic controls for more precise temperature management and easier programming.
| Model | Controls | Our Price |
|---|---|---|
| FN8130G | Mechanical | $6,490 |
| FN8130GE | Digital electronic | $7,990 |
Contact Sean to order the FN8130GE.
Full Moffat gas fryer range
| Model | Brand | Width | Configuration | Power | Our Price | Best For |
|---|---|---|---|---|---|---|
| FF18 | Fastfri | 400mm | Single 18L | 90 MJ/hr | $2,310 | Budget entry |
| CF2 | Cobra | 400mm | Single 21L | 88 MJ/hr | $2,920 | Target burner |
| GT18 | Blue Seal | 400mm | Single 18L | 90 MJ/hr | $3,690 | U-burner, cool zone |
| FN8118G | Waldorf | 400mm | Single 18L | 90 MJ/hr | $3,890 | Waldorf brand |
| GT45 | Blue Seal | 450mm | Single 20L | 90 MJ/hr | $4,580 | Infrared, oil filter ready |
| FN8120G | Waldorf | 450mm | Single 20L | 90 MJ/hr | $4,790 | Australia's best selling |
| GT60 | Blue Seal | 600mm | Single 31L | 90 MJ/hr | $6,090 | Wide body, 3 baskets |
| GT46 | Blue Seal | 450mm | Split 2 x 13L | 90 MJ/hr | $6,190 | Twin vat, dual temperature |
| FN8130G | Waldorf | 600mm | Single 31L | 90 MJ/hr | $6,490 | Waldorf brand, same as GT60 |
| FN8226G | Waldorf | 600mm | Twin pan | - | $6,290 | - |
| GT60 HPO | Blue Seal | 600mm | Single 31L high power | - | $8,590 | - |
| FN8130G-HPO | Waldorf | 600mm | Single high power | - | $8,870 | - |
All prices exclude GST.
Optional accessories
- Waldorf Filtamax oil filtration system
- Fish plates
- Extra standard baskets
- Large baskets
- Side splash guards
- Joining caps
- Castors
- Plinth mounting
Warranty and support
- 2 years comprehensive parts and labour warranty
- 10 years warranty on stainless steel pan
- Moffat national service and spare parts network — 24 hour repair service nationwide
