Product Overview

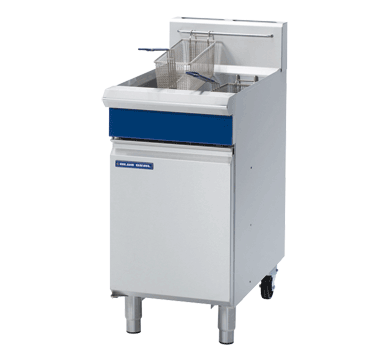

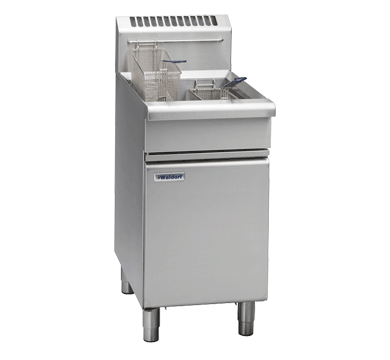

The Waldorf FN8120G is a 450mm single pan gas fryer from Moffat — the same machine as the Blue Seal GT45 in Waldorf's Australian livery, and Australia's best selling single tank gas fryer. Built from all 304 grade stainless steel with 2 x 45 MJ/hr patented infrared burners, 20 litres of oil capacity and a 31 kg per hour production rate, the FN8120G is the benchmark mid-range gas fryer for Australian commercial kitchens. Infrared burners transfer heat directly into the oil rather than heating surrounding air, reducing heat lost up the flue and delivering faster recovery times between loads. The fryer is designed to accept the Waldorf Filtamax oil filtration system which rolls in underneath, connects directly and rolls back out for storage under the fryer — no separate storage space required. No gas regulator required. Supplied for natural gas or LPG at the same price.
Best for: Restaurants, cafes and takeaways that want Australia's most proven 450mm single pan gas fryer with the option to add the Waldorf Filtamax integrated filtration system.
Key features
| Feature | Detail |
|---|---|
| Burners | 2 x 45 MJ/hr patented infrared burners — direct heat transfer, less flue loss |
| Oil capacity | 20 litres (37 lbs shortening) |
| Production rate | 31 kg per hour |
| Power output | 90 MJ/hr total |
| Gas supply | Natural gas or LPG — specify when ordering. No gas regulator required. |
| Controls | Mechanical — easy wipe down |
| Vat design | Open stainless steel pan with large capacity cool zone |
| Drain valve | 32 mm (1¼ inch) |
| Baskets | 2 x chrome plated wire baskets — 140 mm W x 335 mm D x 145 mm H |
| Oil filter | Waldorf Filtamax filtration system rolls in underneath — no separate storage required |
| Pan warranty | 10 years on stainless steel pan |
| Construction | All 304 grade stainless steel |
| Legs | 1.2 mm stainless steel adjustable legs, rear rollers |
| Dimensions | W 450 mm x D 850 mm x H 1130 mm |
| Weight | 81 kg nett / 122 kg packed |
| Manufacturer | Moffat, New Zealand |
| Warranty | 2 years parts and labour by Moffat |
Why infrared burners?
The FN8120G uses patented infrared burners that emit radiant heat transferring directly into the oil rather than heating the surrounding air. A greater proportion of the gas energy goes into frying rather than being lost up the flue — resulting in faster heat-up, better temperature recovery between batches and lower gas consumption over a service period compared to open flame burners.
Moffat 450mm gas fryer range — same factory, two brands
| Model | Brand | Width | Oil | Production | Power | Our Price |
|---|---|---|---|---|---|---|
| GT45 | Blue Seal | 450mm | 20L | 31 kg/hr | 90 MJ/hr | $4,580 |
| FN8120G | Waldorf | 450mm | 20L | 31 kg/hr | 90 MJ/hr | $4,790 |
Full Moffat gas fryer range
| Model | Brand | Width | Oil Capacity | Power | Our Price | Best For |
|---|---|---|---|---|---|---|
| FF18 | Fastfri | 400mm | 18L | 90 MJ/hr | $2,310 | Budget entry, compact single pan |
| CF2 | Cobra | 400mm | 21L | 88 MJ/hr | $2,920 | Target burner, higher oil capacity |
| GT18 | Blue Seal | 400mm | 18L | 90 MJ/hr | $3,690 | U-burner, cool zone vat |
| FN8118G | Waldorf | 400mm | 18L | 90 MJ/hr | $3,890 | Waldorf brand, same spec as GT18 |
| GT45 | Blue Seal | 450mm | 20L | 90 MJ/hr | $4,580 | Infrared burners, oil filter ready |
| FN8120G | Waldorf | 450mm | 20L | 90 MJ/hr | $4,790 | Australia's best selling gas fryer |
| GT60 | Blue Seal | 600mm | - | - | $5,950 | - |
| GT46 | Blue Seal | 450mm split | - | - | $5,990 | - |
| FN8130G | Waldorf | 600mm | - | - | $6,250 | - |
| FN8226G | Waldorf | 600mm twin | - | - | $6,290 | - |
| GT60 HPO | Blue Seal | 600mm | - | - | $8,590 | - |
| FN8130G-HPO | Waldorf | 600mm | - | - | $8,870 | - |
All prices exclude GST.
Optional accessories
- Waldorf Filtamax oil filtration system
- Fish plates
- Extra baskets
- Side splash guards
- Joining caps
- Castors
- Plinth mounting
Warranty and support
- 2 years comprehensive parts and labour warranty
- 10 years warranty on stainless steel pan
- Moffat national service and spare parts network — 24 hour repair service nationwide
