Product Overview

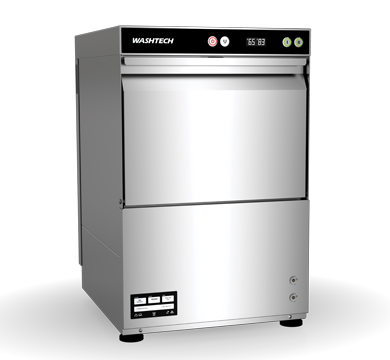

The Washtech XV is a fully featured compact undercounter dishwasher designed for small cafés, wine bars and tight kitchen spaces where reliability and simplicity matter most. Engineered in New Zealand, the XV uses just 2.2 litres of water per cycle and washes up to 960 plates per hour, delivering commercial performance with one of the most space-efficient footprints available. Using push-button start, separated composite wash and rinse arms, and hands-free drainage, it's built to be run by any staff member with minimal training.
Best for: Small cafés, wine bars, juice bars, food trucks and any venue needing a compact, no-fuss undercounter dishwasher on a single-phase power supply.
How the Washtech XV cleans
The XV uses separated upper and lower composite wash and rinse arms with precision-moulded jets, delivering consistent spray coverage across the full rack. Hot Rinse Retention means the machine drains dirty wash water during the cycle and replaces it with clean rinse water, so dishes are always washed in the hottest, cleanest water available. The final rinse sanitises at 82°C, meeting all Australian state health regulations.
Key features
| Feature | Detail |
|---|---|
| Wash cycles | 60 and 120 seconds |
| Water consumption | 2.2 litres per cycle |
| Throughput | Up to 960 plates per hour |
| Rinse temperature | 82°C (sanitising) |
| Wash heating | 2.5 kW wash / 3.0 kW rinse |
| Controls | Simple push-button operation |
| Wash arms | Separated composite wash and rinse arms, upper and lower |
| Rack size | 450 mm x 450 mm |
| Wash chamber height | 320 mm clearance |
| Dimensions | W 500 mm × H 780 mm × D 600 mm |
| Weight | 47 kg unpacked |
| Power | 240V / 15 amp single phase |
| Drainage | Hands-free, no drain plug required |
| Filtration | Multiple filtration — stainless steel wash and drain filter |
| WaterMark certified | Yes — meets all Australian state health regulations |
| Construction | Fully welded marine-grade stainless steel |
| Made in | New Zealand |
| Warranty | 2 years parts and labour / 5 years on the cabinet |
Simple to use
Like the XG and XU undercounter dishwashers, the XV uses a reliable simple robust control system. No complex operation just four simple push button switches. First power on and off, second a drain switch, and then two push button switches to start the cycle, one selects a one minute cycle the other a two minute cycle. The Washtech two new control families are explained further at Washtech Controls
Warranty and support
The Washtech XV is backed by Moffat Australia's national service network with parts stocked locally nationwide.
- 2-year comprehensive warranty on parts and labour
- 5-year warranty on the stainless steel cabinet
- Moffat national service and spare parts network
What's in the box
- Washtech XV commercial undercounter dishwasher
- 1 × 450 mm dish rack
- 1 × 450 mm cup rack
- 1 × cutlery container
- Stainless steel water supply hose
- User and maintenance guide
Frequently asked questions
Who is the Washtech XV best suited for? The XV is ideal for small cafés, wine bars, juice bars and any venue washing up to 960 plates per hour that needs a compact, reliable machine with simple controls and a small footprint. It fits a 500 mm bench depth and 780 mm height clearance. Because the racks are 450 mm x 450mm they are much easier to lift and move than the bigger 500 mm racks
What rack size does the Washtech XV use? The XV uses 450 mm × 450 mm racks, supplied with the machine. This is the standard size for smaller undercounter dishwashers.
Does the Washtech XV need three-phase power? No - the XV runs on standard single-phase 240V 15-amp power, making it suitable for most café and bar installations without any special electrical work.
Is the Washtech XV WaterMark certified? Yes the XV is WaterMark certified and compliant with health regulations in all Australian states.
