Product Overview

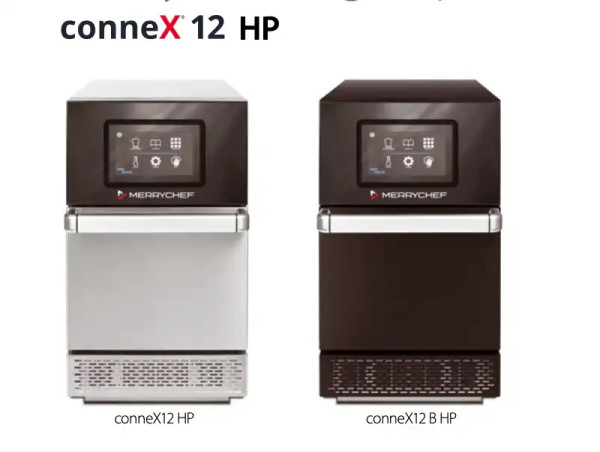

The Merrychef ConneX 12 HP is the high power WiFi model in the ConneX 12 range — delivering 5.8 kW total power and a 2.0 kW microwave on a 2 phase 20 amp connection. It shares the same 311mm x 311mm cavity as the ConneX 12 E and SP but with nearly double the microwave power, making it significantly faster on high-volume quick service menus. WiFi connected via the Merrychef ConnectLine platform, no hood required.
Best for: High-volume quick service restaurants, food courts and busy venues that need maximum cooking speed with WiFi menu management and have access to 2 phase power.
How the Merrychef ConneX 12 HP cooks
The ConneX 12 HP uses the same three-technology cooking system as all Merrychef speed ovens — top impingement airflow, microwave energy and convection heat — but at 5.8 kW total with a 2.0 kW microwave, it delivers significantly faster cook times than the single phase ConneX models. This makes it the right choice for operations with high throughput requirements where speed per cycle is critical. WiFi connectivity enables remote menu management through the Merrychef ConnectLine cloud platform, and the built-in catalytic converter eliminates the need for an exhaust hood.
Key features
| Feature | Detail |
|---|---|
| Total power | 5.8 kW |
| Microwave | 2.0 kW |
| Convection | 2.2 kW |
| Cavity size | 311 mm x 311 mm (suits up to 12" plate) |
| Power supply | 2 phase 20 amp |
| Hood required | No — built-in catalytic converter |
| Connectivity | USB / WiFi — Merrychef ConnectLine cloud platform |
| Warranty | 2 years parts and labour by Moffat |
Full Merrychef range comparison
ConneX series WiFi connected, cloud menu management
| Merrychef | Plug | Power | Microwave | Convection | Our Price | Best For |
|---|---|---|---|---|---|---|
| ConneX 12 E | 15A single | 3.0kW | 0.8kW | 2.2kW | $16,500 | Cafes and small bars |
| ConneX 12 SP | 15A single | 3.68kW | 1.0kW | 2.2kW | $18,500 | Higher output on single phase |
| ConneX 12 HP | 2 phase 20A | 5.8kW | 2.0kW | 2.2kW | $18,900 | High power quick service |
| ConneX 16 HP | 2 phase 20A | 5.8kW | 2.0kW | 3.2kW | $22,250 | Large cavity, full size plates |
e series USB menu loading, cloud management via Ethernet
| Merrychef | Plug | Power | Microwave | Convection | Our Price | Best For |
|---|---|---|---|---|---|---|
| e1s | 15A single | 3.0kW | 0.8kW | 2.2kW | $13,700 | Entry level, single site, cafes and bars |
| e3 HP | 2 phase 20A | 4.7kW | 1.0kW | 3.0kW | $15,500 | High convection, baking and pastry |
| e4 HP | 2 phase 20A | 6.2kW | 1.5kW | 3.2kW | $24,250 | High power, large cavity, full menu range |
| e5 HP | 2 phase 20A | 6.2kW | 1.4kW | 3.2kW | $29,250 | Large cavity, high volume operations |
All prices exclude GST
Warranty and support
- 2-year comprehensive warranty on parts and labour
- Moffat national service and spare parts network
Frequently asked questions
What is the difference between the ConneX 12 HP and the ConneX 12 SP? The HP requires 2 phase 20 amp power and delivers 5.8 kW total with a 2.0 kW microwave. The SP runs on single phase 15 amp at 3.68 kW. If you have 2 phase available the HP is significantly faster.
What is the difference between the ConneX 12 HP and the ConneX 16 HP? Same power output but the ConneX 16 HP has a larger 412mm x 412mm cavity and 3.2 kW convection vs 2.2 kW. If you need to handle larger plates or higher food volumes the 16 HP is the right step up.
Does the ConneX 12 HP need a hood? No. Built-in catalytic converter — no extraction required.
For enquiries please contact
Phone: Sean 0412 034948
Email: sales@eattucker.com
Freight to metro areas typically $80 plus GST. Please email for your postcode.
