Product Overview

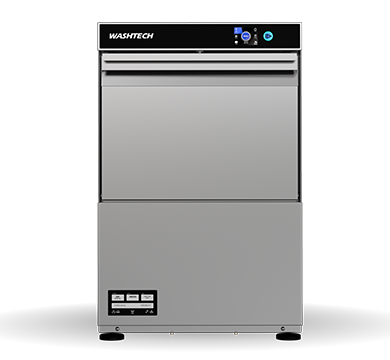

The Washtech XV is a fully featured compact undercounter dishwasher designed for small cafés, wine bars and tight kitchen spaces where reliability and simplicity matter most. Engineered in New Zealand, the XV uses just 2.2 litres of water per cycle and washes up to 960 plates per hour ,delivering commercial performance in one of the most space-efficient footprints available. With push-button start, separated composite wash and rinse arms, and hands-free drainage, it's built to be picked up and run by any staff member with minimal training.
Best for: Small cafés, wine bars, juice bars, food trucks and any venue needing a compact, no-fuss undercounter dishwasher on a single-phase power supply.
How the Washtech XV cleans
The XV uses separated upper and lower composite wash and rinse arms with precision-moulded jets, delivering consistent spray coverage across the full rack. Hot Rinse Retention means the machine drains dirty wash water during the cycle and replaces it continuously, so dishes are always washed in the hottest, cleanest water available. The final rinse sanitises at 82°C, meeting all Australian state health regulations.
Key features
| Feature | Detail |
|---|---|
| Wash cycles | 60 and 120 seconds |
| Water consumption | 2.2 litres per cycle |
| Throughput | Up to 960 plates per hour |
| Rinse temperature | 82°C (sanitising) |
| Wash heating | 2.5 kW wash / 3.0 kW rinse |
| Controls | Push-button start with PCB timing and heating control |
| Wash arms | Separated composite wash and rinse arms, upper and lower |
| Rack size | 450 mm x 450 mm |
| Wash chamber height | 320 mm clearance |
| Dimensions | W 500 mm × H 780 mm × D 600 mm |
| Weight | 47 kg unpacked |
| Power | 240V / 15 amp single phase |
| Drainage | Hands-free, no drain plug required |
| Filtration | Multiple filtration — stainless steel wash and drain filter |
| WaterMark certified | Yes — meets all Australian state health regulations |
| Construction | Fully welded marine-grade stainless steel |
| Made in | New Zealand |
| Warranty | 2 years parts and labour / 5 years on the cabinet |
Simple to run, easy to repair
The XV uses two basic PCB control boards - one for timing and one for heating. Both are simple, proven components that have been in commercial kitchens for years. If one ever needs replacing, parts cost around $250 each and can be swapped quickly by any service technician. This is a significant advantage over more complex machines where electronic failures can mean expensive downtime.
Push-button start means any staff member can operate the XV with zero training. The flush front design and rear wheels make it easy to pull out for cleaning, and the insulated door with magnetic safety switch keeps heat and noise inside where it belongs.
Warranty and support
The Washtech XV is backed by Moffat Australia's national service network with parts stocked locally nationwide.
- 2-year comprehensive warranty on parts and labour
- 5-year warranty on the stainless steel cabinet
- Moffat national service and spare parts network
- Replacement PCBs available nationally for around $250 each
What's in the box
- Washtech XV commercial undercounter dishwasher
- 1 × 450 mm dish rack
- 1 × 450 mm cup rack
- 1 × cutlery container
- Stainless steel water supply hose
- User and maintenance guide
Frequently asked questions
Who is the Washtech XV best suited for? The XV is ideal for small cafés, wine bars, juice bars and any venue washing up to 960 plates per hour that needs a compact, reliable machine with simple controls and a small footprint. It fits a 500 mm bench depth and 780 mm height clearance.
What controls does the Washtech XV have? The XV uses push-button start with two PCB control boards - one for timing and one for heating. It's deliberately simple, which means any staff member can operate it and repairs are straightforward and affordable if ever needed.
How much does it cost to repair the XV if something goes wrong? The XV's two PCB control boards each cost around $250 to replace - significantly cheaper than more complex electronic systems. This makes the XV one of the most cost-effective dishwashers to own and maintain long term.
What rack size does the Washtech XV use? The XV uses 450 mm × 450 mm racks, supplied with the machine. This is the standard size for smaller undercounter dishwashers.
Does the Washtech XV need three-phase power? No - the XV runs on standard single-phase 240V 15-amp power, making it suitable for most café and bar installations without any special electrical work.
Is the Washtech XV WaterMark certified? Yes the XV is WaterMark certified and compliant with health regulations in all Australian states.
